1982 Yamaha IT250 Headlight OEM Parts Diagram

Submodel IT250J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

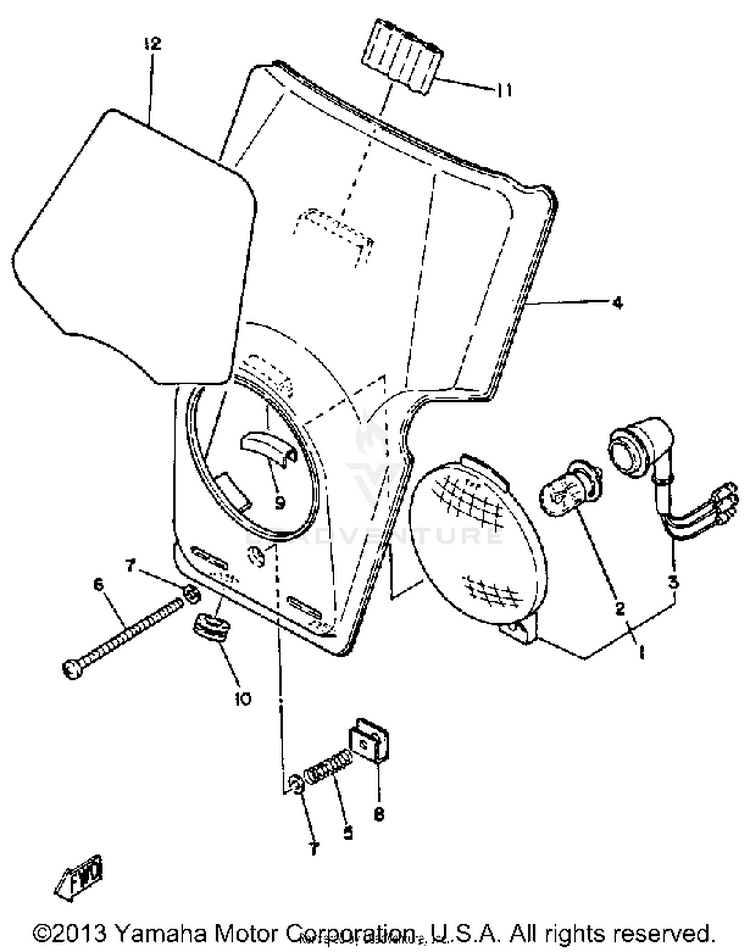

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14V5-84110-00-00HEADLIGHT UNIT ASSEMBLY$13.93$10.95Not Shipping
2527-84114-09-XXBULB, HL 6V25/25W$6.49$5.06Not Shipping
34V5-84140-00-00SOCKET CORD ASSEMBLY$17.49$13.64Not Shipping
44V5-84130-10-00BODY ASSEMBLY, HEADLIGHT | SKY BLUE$56.53$44.09Not Shipping
54V5-84132-00-00SPRING, SCREW$3.20$2.75Not Shipping
698580-04540-00

(replaces part #
849-84724-00-00)

SCREW, PAN HEAD$2.70$2.324 In-Stock
792990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
84V5-84134-00-00NUT, ADJUST$4.30$3.70Not Shipping
94V5-84143-00-00DAMPER, HDLT STAY$2.77$2.49Not Shipping
1090480-12053-00GROMMET$8.49$6.6210+ In-Stock
114V5-83592-00-00DAMPER$38.99$31.97Not Shipping
124V5-84141-00-00EMBLEM, HEADLIGHT$16.49$13.52Not Shipping
