1983 Yamaha Virago XV500 Electrical 2 OEM Parts Diagram

Submodel XV500K - 1983

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 2

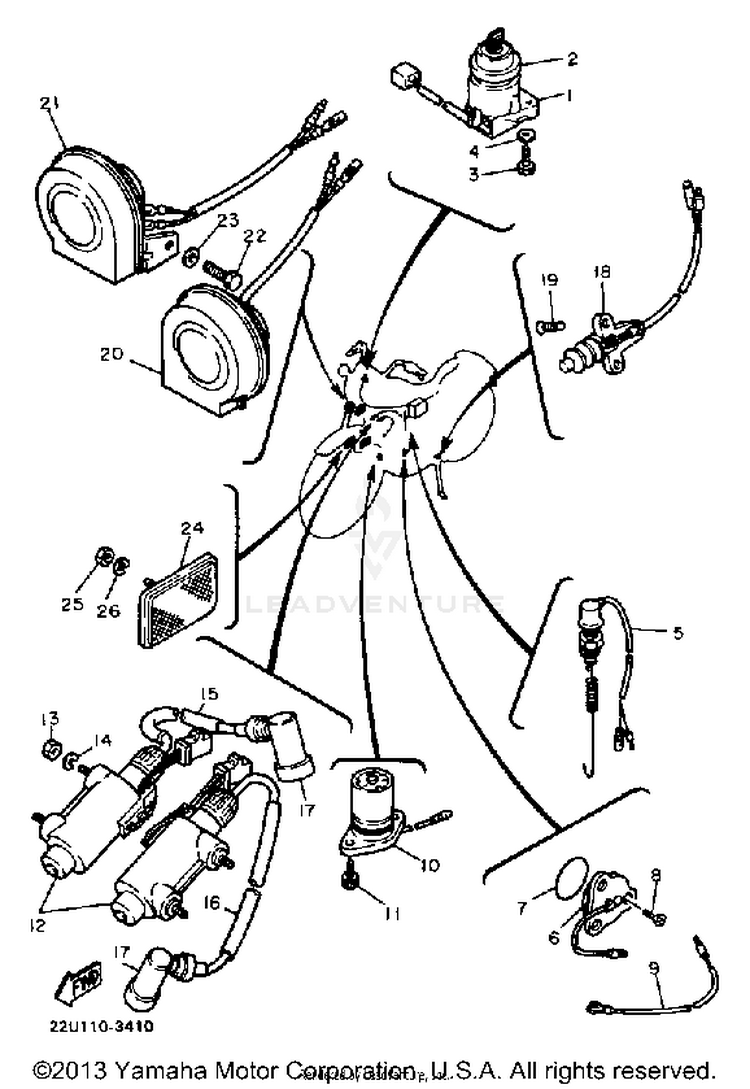

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13JV-82501-00-00MAIN SWICH STEERING LOCK$225.99$176.27Usually ships in 7-10 business days
290480-40047-00GROMMET$4.65$4.18Usually ships in 7-10 business days
397D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
492990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
54GY-82530-01-00

(replaces part #
22U-82530-02-00)

STOP SWITCH ASSY$38.99$31.97Usually ships in 7-10 business days
61L9-82540-00-00NEUTRAL SWITCH ASSY$51.99$40.557 In-Stock
793210-29196-00O-RING$9.49$7.4010+ In-Stock
898707-05012-00

(replaces part #
98701-05012-00)

SCREW, COUNTERSUNK$1.85$1.8410+ In-Stock
92JX-82541-00-00

(replaces part #
22U-82509-00-00)

WIRE, LEAD$17.49$14.34Usually ships in 7-10 business days
1022U-85720-01-00OIL LVEL GAUGE ASSEMBLY 001 | 2917-00$113.99$88.91Usually ships in 7-10 business days
1191314-06016-00

(replaces part #
91311-06016-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.406 In-Stock
124X7-82310-70-00IGNITION COIL ASSEMBLY$91.99$71.75Not Shipping
1395380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
154X7-82341-00-00CORD, HIGH TENS 1$87.99$68.63Usually ships in 7-10 business days
164X7-82341-00-00CORD, HIGH TENS 1$87.99$68.63Usually ships in 7-10 business days
171J7-82370-00-00PLUG CAP ASSEMBLY$105.99$82.67Usually ships in 7-10 business days
1833E-82566-00-00

(replaces part #
5H0-82566-00-00)

SWITCH, SIDE STAND$150.99$117.77Usually ships in 7-10 business days
1998707-05016-00

(replaces part #
98706-05016-00)

SCREW, FLAT HEAD$7.99$6.233 In-Stock
2022U-83371-20-00HORN$66.99$52.25Usually ships in 7-10 business days
2122U-83371-30-00HORN$66.99$52.25Usually ships in 7-10 business days
2297017-08016-00

(replaces part #
97016-08016-00)

BOLT$9.49$7.408 In-Stock
2392907-08100-00

(replaces part #
92906-08100-00)

WASHER, SPRING$9.49$7.4010+ In-Stock
244X7-85110-00-00FRONT REFLECTOR ASSEMBLY$44.99$36.89Usually ships in 7-10 business days
2595317-05700-00

(replaces part #
95311-05700-00)

NUT$9.49$7.402 In-Stock
2692990-05100-00WASHER, SPRING-$0.8310+ In-Stock
