1983 Yamaha Virago XV500 Intake OEM Parts Diagram

Submodel XV500K - 1983

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

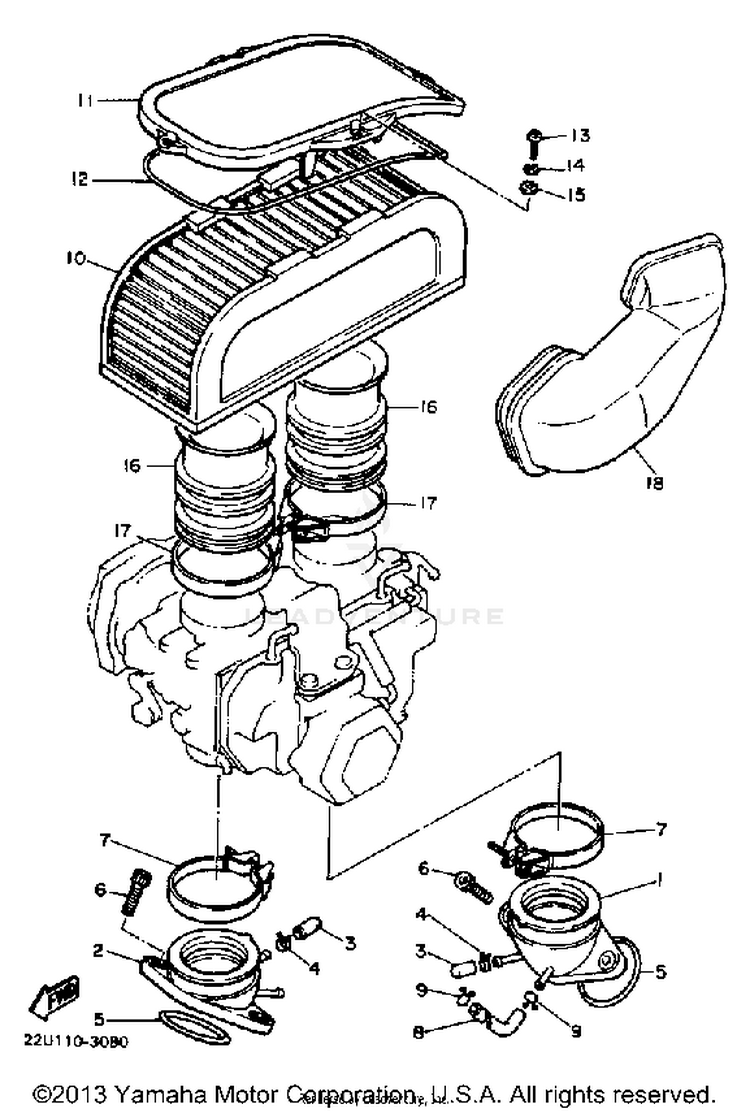

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
122U-13586-02-00

(replaces part #
22U-13586-01-00)

JOINT, CARBURETOR 1$89.99$70.19Not Shipping
222U-13596-01-00JOINT, CARBURETOR 2$89.99$70.19Usually ships in 7-10 business days
316G-13569-00-00PLUG, BLIND$8.49$6.624 In-Stock
490467-10039-00CLIP$10.49$8.188 In-Stock
593210-36769-00

(replaces part #
93210-36549-00)

O-RING$12.49$9.7410+ In-Stock
691317-06020-00

(replaces part #
91316-06020-00)

BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
790460-52264-00CLAMP, HOSE (90460-52210-00)$14.99$12.29Usually ships in 7-10 business days
822U-13926-00-00HOSE$7.49$6.74Not Shipping
990467-100A1-00

(replaces part #
90467-10008-00)

CLIP$8.49$6.6210+ In-Stock
1022U-14450-00-00ELEMENT ASSEMBLY$73.99$57.71Usually ships in 7-10 business days
1122U-14412-00-00CAP, CLEANER CASE 1$24.99$20.49Usually ships in 7-10 business days
121VJ-14462-00-00

(replaces part #
3Y0-14452-00-00)

SEAL$19.99$15.5910+ In-Stock
1397885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
1492990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1592990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
1622U-14469-01-00

(replaces part #
22U-14469-00-00)

FUNNEL, AIR$35.99$29.51Usually ships in 7-10 business days
1790450-58002-00

(replaces part #
90460-58015-00)

HOSE CLAMP ASSY$18.49$14.4210+ In-Stock
1822U-14437-00-00DUCT$14.42$11.82Usually ships in 7-10 business days
