1983 Yamaha YZ100 Electrical 1 OEM Parts Diagram

Submodel YZ100K - 1983

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

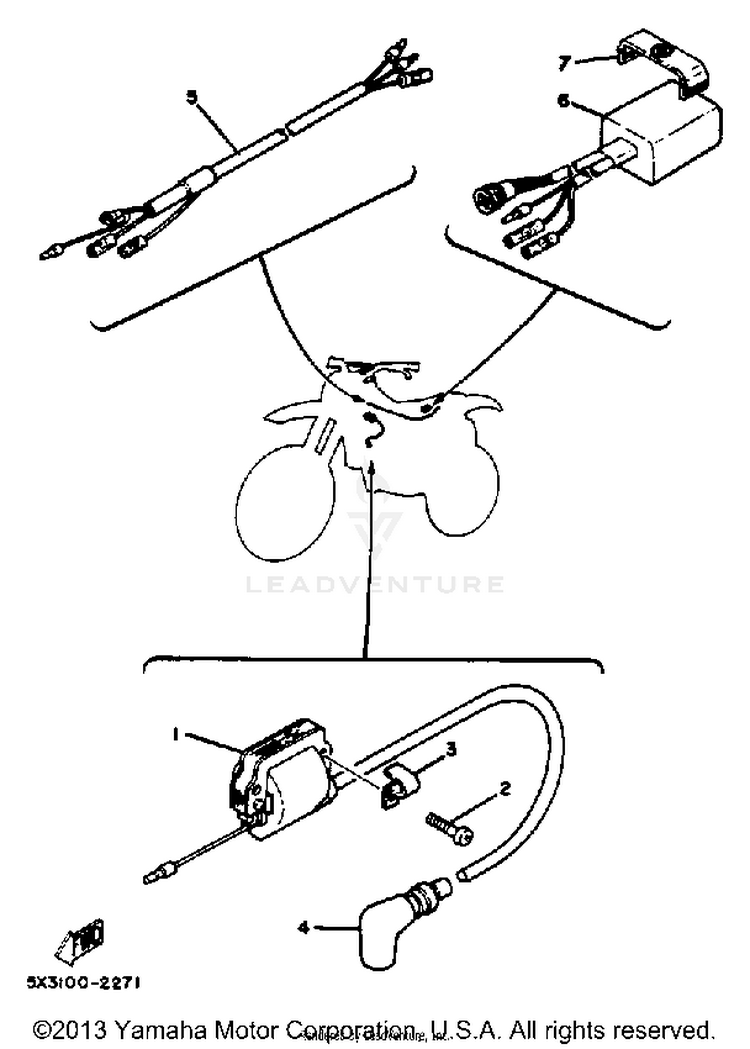

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12X6-82310-10-00IGNITION COIL ASSEMBLY$121.99$95.15Not Shipping
298580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
390462-05005-00CLAMP$10.49$8.183 In-Stock
48DG-82370-00-00

(replaces part #
81E-82370-20-00)

PLUG CAP ASSY$53.99$42.1110+ In-Stock
55X3-82590-00-00WIRE HARNESS ASSEMBLY$19.99$16.39Not Shipping
65X2-85540-10-00CDI UNIT ASSEMBLY$168.99$142.55Usually ships in 7-10 business days
721V-21376-00-00BAND, TOOL$7.49$5.845 In-Stock
