1983 Yamaha YZ100 Frame-Tool OEM Parts Diagram

Submodel YZ100K - 1983

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME-TOOL

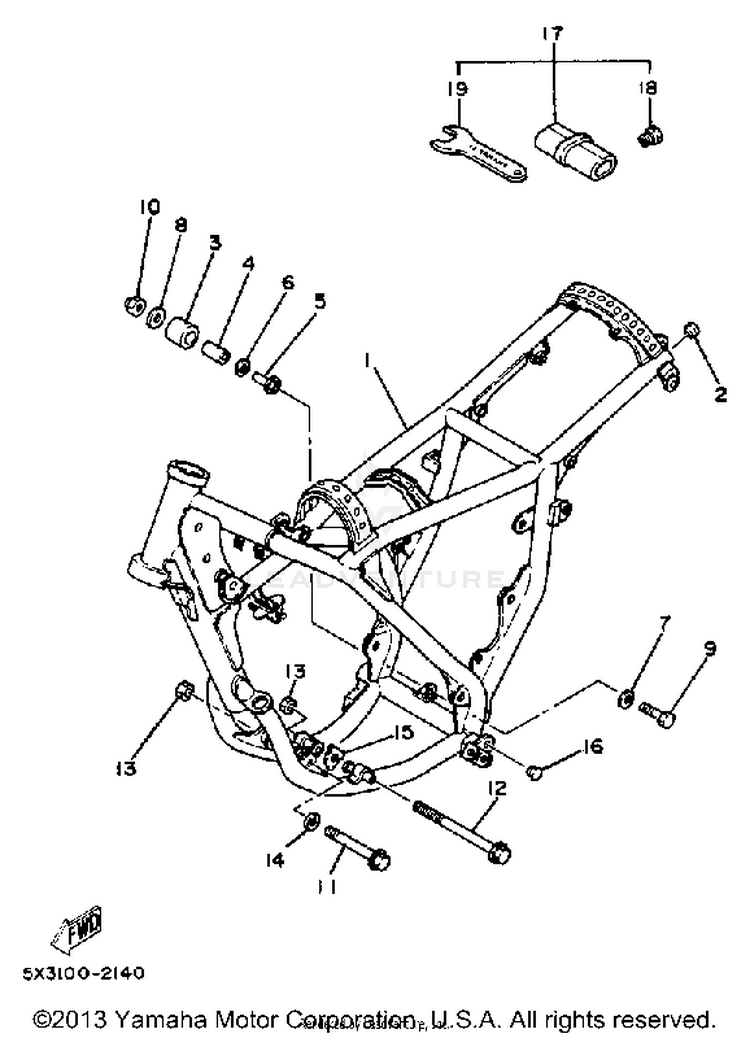

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15X3-21110-01-33FRAME | YAMAHA BLACK$345.99$276.53Not Shipping
290339-13005-00PLUG$4.65$4.0010+ In-Stock
330X-22178-00-00TENSIONER$38.99$30.4110+ In-Stock
44V4-22184-00-00BUSH$4.80$4.1310+ In-Stock
53R3-2148A-00-00SHAFT$7.52$6.77Not Shipping
690201-13013-00

(replaces part #
90201-13202-00)

WASHER, PLATE$9.49$7.403 In-Stock
790201-081R9-00

(replaces part #
90201-08753-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
890201-08638-00WASHER, PLATE$2.80$2.41Not Shipping
997013-08050-00

(replaces part #
97313-08050-00)

BOLT,HEX$9.49$7.401 In-Stock
1095617-08100-00

(replaces part #
95611-08100-00)

NUT, U$10.49$8.1810+ In-Stock
1195817-08100-00

(replaces part #
95811-08100-00)

BOLT, FLANGE$6.49$5.062 In-Stock
1290105-08473-00

(replaces part #
95811-08165-00)

BOLT, WASHER BASED$7.99$7.19Not Shipping
1390185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
1492990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
1590214-09019-00WASHER, CLAW$9.99$8.99Not Shipping
1690338-12131-00PLUG$1.50$1.35Not Shipping
175X3-28100-00-00TOOL KIT$27.99$22.95Usually ships in 7-10 business days
182K7-85555-00-00PULLER, ROTOR$24.99$19.491 In-Stock
1910V-28135-00-00SPANNER, SPECIAL$41.99$34.43Not Shipping
