1984 Yamaha 225DX Frame OEM Parts Diagram

Submodel YTM225DXL - 1984

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

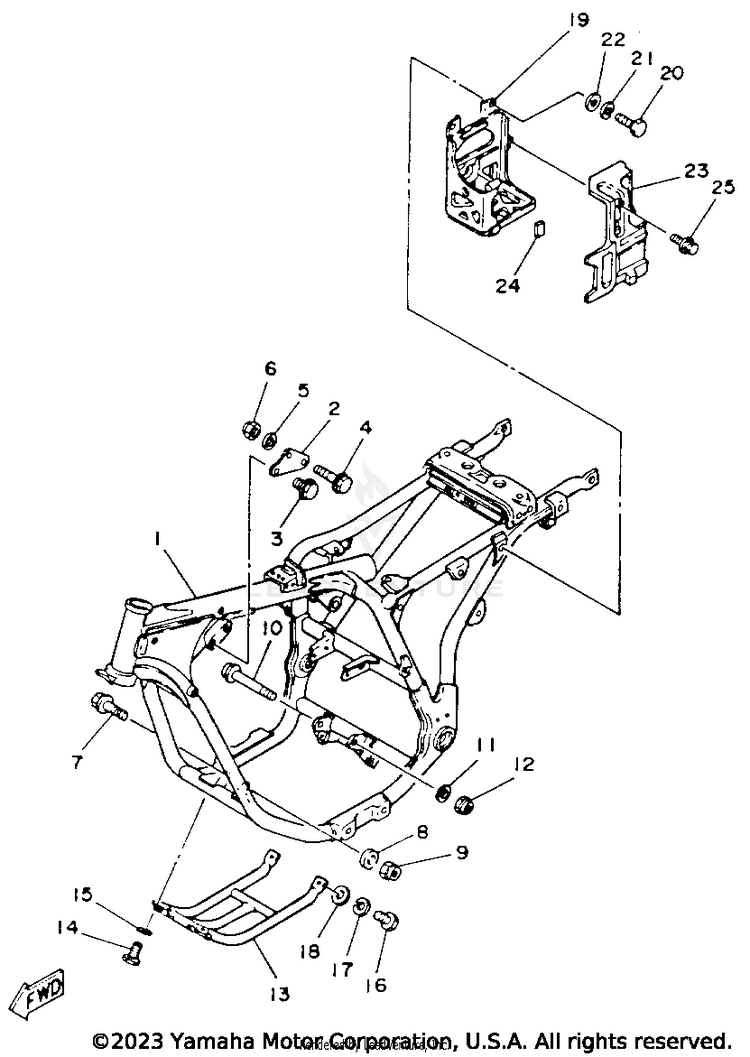

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1[29-U2111-00-13FRAME COMP. (DXL)$0.00$0.00Not Shipping
1[29-U2111-00-03FRAME COMP. (DXK) | Yamaha Blk$0.00$0.00Not Shipping
229U-21315-00-00STAY, ENGINE 2$17.99$14.75Usually ships in 7-10 business days
395817-08012-00

(replaces part #
95811-08012-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
495817-08050-00

(replaces part #
95811-08050-00)

BOLT, FLANGE$3.70$3.1810+ In-Stock
590201-094G1-00WASHER, PLATE$10.49$8.185 In-Stock
690185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
795814-08065-00

(replaces part #
95811-08065-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
890201-094G1-00WASHER, PLATE$10.49$8.185 In-Stock
990185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
1095817-08105-00

(replaces part #
95811-08105-00)

BOLT, FLANGE$7.99$7.19Usually ships in 7-10 business days
1190201-094G1-00WASHER, PLATE$10.49$8.185 In-Stock
1290185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
1329U-21471-00-33PROTECTOR,ENGINE | Yamaha Blk$52.66$41.07Usually ships in 7-10 business days
1497013-08012-00

(replaces part #
97313-08012-00)

BOLT (661)$3.55$3.0510+ In-Stock
1592990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1697D95-06016-00

(replaces part #
97011-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
1792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1890201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
1929U-21170-00-00BOX$163.99$127.91Usually ships in 7-10 business days
2097D95-06016-00

(replaces part #
97011-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
2192995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2290201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
2324W-21245-00-00BOX$48.99$40.17Not Shipping
243FC-2139R-00-00COVER 2$2.22$2.002 In-Stock
2590119-06152-00

(replaces part #
90119-06056-00)

BOLT, WITH WASHER$3.55$3.0510+ In-Stock
