1984 Yamaha 225DX Generator OEM Parts Diagram

Submodel YTM225DXL - 1984

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

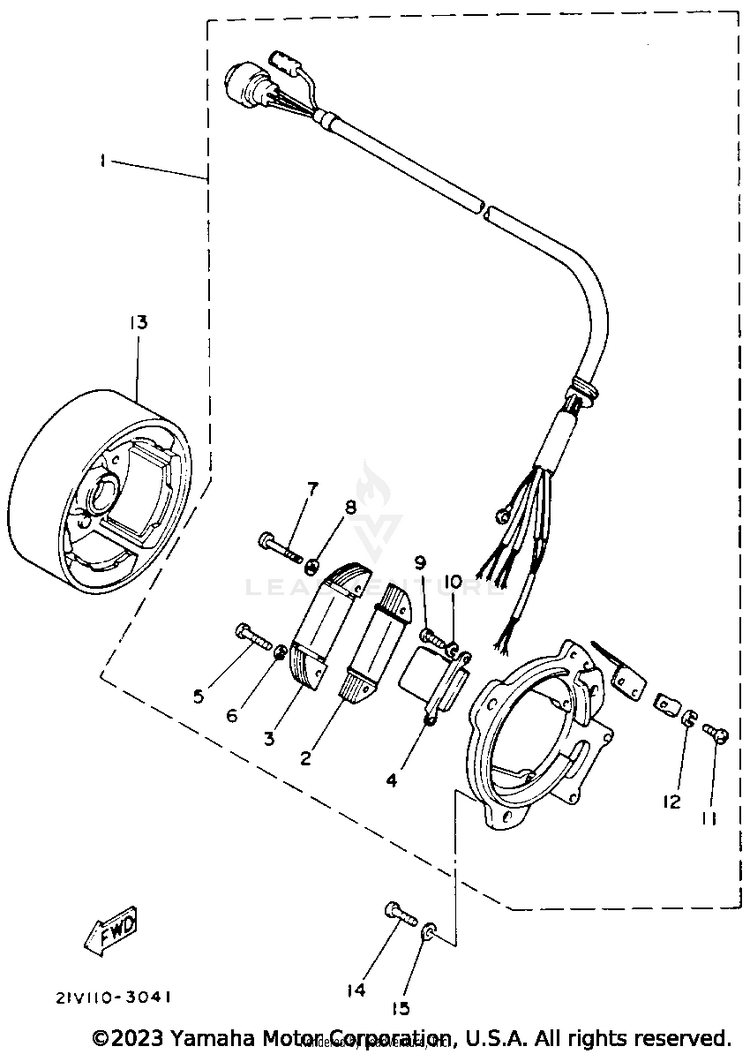

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
129U-85510-20-00STATOR ASSEMBLY (24W-85510-20)$730.99$570.17Not Shipping
221V-85512-20-00COIL SOURCE 2$100.99$80.22Usually ships in 7-10 business days
324W-85513-20-00COIL, LIGHTING 1$67.99$53.03Not Shipping
459V-85580-20-00

(replaces part #
21V-85580-20-00)

COIL, PULSER$138.99$108.41Not Shipping
598507-04018-00

(replaces part #
98506-04018-00)

SCREW, PAN HEAD$2.35$2.029 In-Stock
692990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
7619-81345-20-00SCREW, PAN HEAD (811-14125-0)$4.10$3.69Usually ships in 7-10 business days
892990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
997885-05010-00

(replaces part #
98580-05010-00)

SCREW, PAN HEAD$3.15$2.715 In-Stock
1092990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1198580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
1292990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
1329U-85550-21-00ROTOR ASSEMBLY$618.99$482.81Usually ships in 7-10 business days
1498507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1592990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
