1984 Yamaha XT250 Generator OEM Parts Diagram

Submodel XT250LC - 1984

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

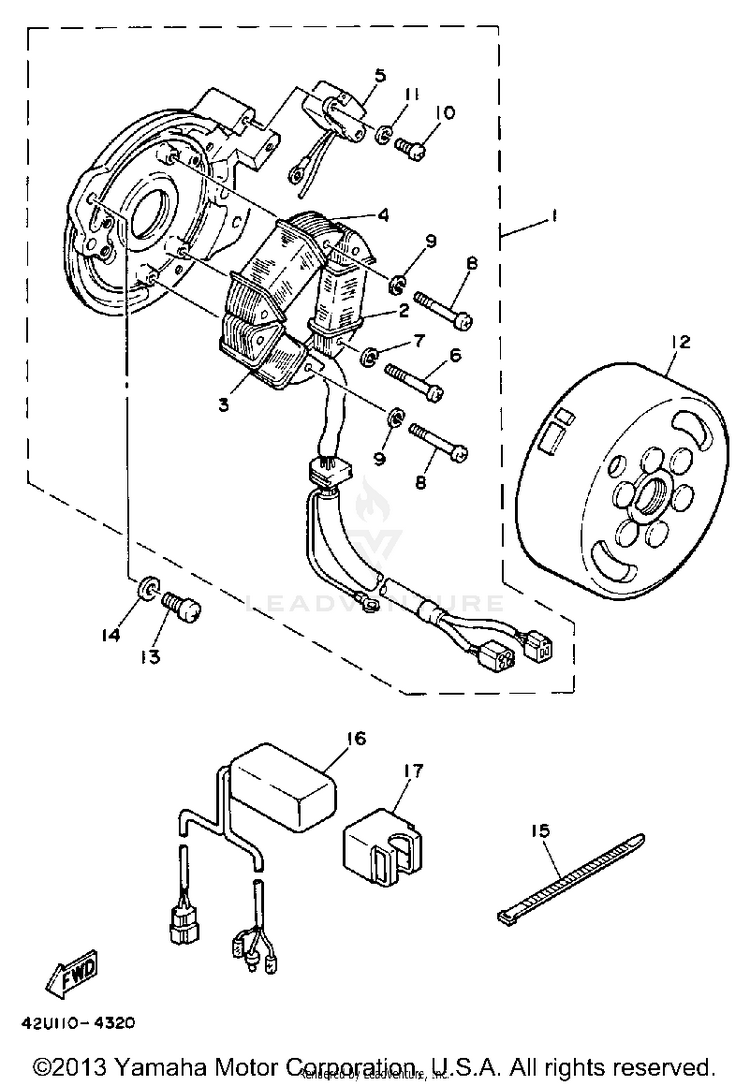

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
155-V8551-02-00UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
230X-85512-00-00COIL, SOURCE$147.99$115.43Not Shipping
330-X8551-30-00UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
430X-85514-00-00COIL, LIGHTING 2$36.74$30.13Usually ships in 7-10 business days
530X-85580-00-00COIL, PULSER$119.99$93.59Usually ships in 7-10 business days
698580-05020-00SCREW, PAN HEAD$1.55$1.356 In-Stock
792990-05100-00WASHER, SPRING-$0.8310+ In-Stock
898507-05035-00

(replaces part #
98501-05035-00)

SCREW, PAN HEAD$9.49$7.407 In-Stock
992990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1098580-05012-00SCREW, PAN HEAD$7.99$6.2310+ In-Stock
1192990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1230X-85550-21-00ROTOR ASSEMBLY (30X-85550-20)$377.99$294.83Usually ships in 7-10 business days
1398507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1490201-06600-00WASHER,PLATE$0.00$0.00Not Shipping
15437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
1630X-85540-20-00CDI UNIT ASSEMBLY$486.99$379.85Usually ships in 7-10 business days
173M5-85546-00-00BAND$9.49$8.54Usually ships in 7-10 business days
