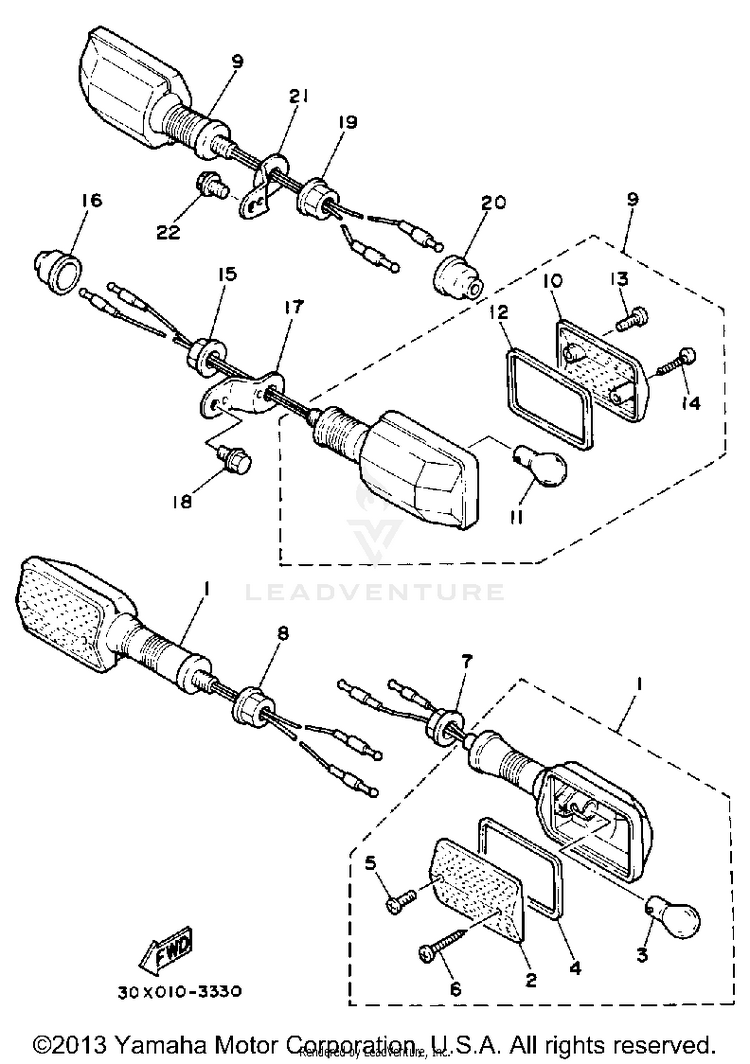

1984 Yamaha XT250 Turnsignal OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5Y1-83310-70-00	FRONT FLASHER LIGHT ASSEMBLY 1	$41.99	$34.43	Not Shipping
2	5Y1-83312-00-00	LENS, FLASHER	$14.49	$11.30	1 In-Stock
3	256-83311-70-XX	BULB (12V-32CP)	$2.35	$2.02	Not Shipping
4	5Y1-83313-00-00	GASKET, FLASHER LENS	$16.49	$13.52	Usually ships in 7-10 business days
5	98580-04010-00	SCREW, PAN HEAD	$9.49	$7.40	10+ In-Stock
6	97707-40630-00 (replaces part # 97701-40530-00)	SCREW, TAPPING	$9.49	$7.40	4 In-Stock
7	90179-12588-00 (replaces part # 95701-12500-00)	NUT, FLANGE	$8.49	$6.62	10+ In-Stock
8	90179-12588-00 (replaces part # 95701-12500-00)	NUT, FLANGE	$8.49	$6.62	10+ In-Stock
9	37A-83330-21-00	REAR FLASHER LIGHT ASSEMBLY 1	$131.99	$102.95	Usually ships in 7-10 business days
10	5Y1-83312-00-00	LENS, FLASHER	$14.49	$11.30	1 In-Stock
11	256-83311-70-XX	BULB (12V-32CP)	$2.35	$2.02	Not Shipping
12	5Y1-83313-00-00	GASKET, FLASHER LENS	$16.49	$13.52	Usually ships in 7-10 business days
13	98580-04010-00	SCREW, PAN HEAD	$9.49	$7.40	10+ In-Stock
14	97707-40630-00 (replaces part # 97701-40530-00)	SCREW, TAPPING	$9.49	$7.40	4 In-Stock
15	90179-12588-00 (replaces part # 95701-12500-00)	NUT, FLANGE	$8.49	$6.62	10+ In-Stock
16	10V-83365-01-00 (replaces part # 10V-83365-00-00)	CAP	$4.35	$3.74	2 In-Stock
17	10V-83368-00-00	STAY, FLASHER 1	$14.49	$11.88	Usually ships in 7-10 business days
18	95817-08012-00 (replaces part # 95816-08012-00)	BOLT, FLANGE	$5.49	$4.28	10+ In-Stock
19	90179-12588-00 (replaces part # 95701-12500-00)	NUT, FLANGE	$8.49	$6.62	10+ In-Stock
20	10V-83365-01-00 (replaces part # 10V-83365-00-00)	CAP	$4.35	$3.74	2 In-Stock
21	10V-83369-00-00	STAY, FLASHER 2	$15.99	$13.11	Usually ships in 7-10 business days
22	95817-08012-00 (replaces part # 95816-08012-00)	BOLT, FLANGE	$5.49	$4.28	10+ In-Stock
