1985 Yamaha BW200 Big Wheel Electrical 1 OEM Parts Diagram

Submodel BW200N - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

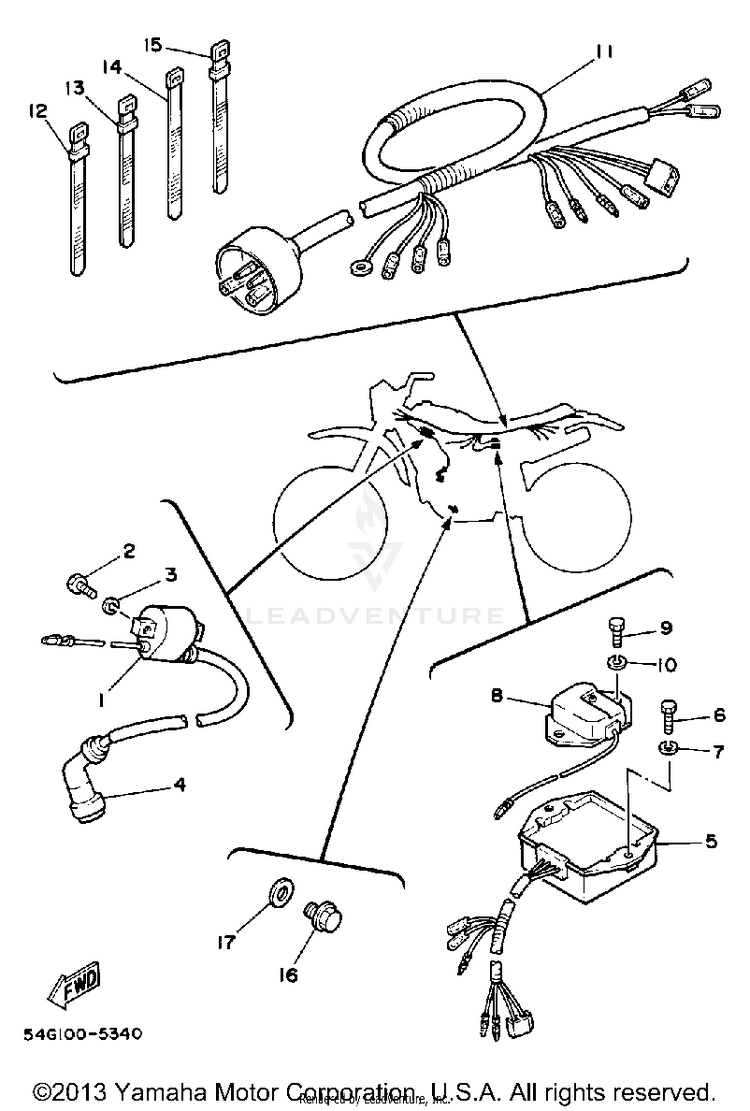

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14RP-82310-25-00

(replaces part #
5M0-82310-M0-00)

Ignition Coil Assy$59.99$49.3610+ In-Stock
297024-06020-00

(replaces part #
97023-06020-00)

BOLT$9.49$7.4010+ In-Stock
392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
43NS-82370-00-00

(replaces part #
1UY-82370-20-00)

PLUG CAP ASSY$41.99$32.7510+ In-Stock
554G-85540-M0-00CDI UNIT ASSEMBLY$426.99$382.16Usually ships in 7-10 business days
697D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
8Y06-03963-00-00

(replaces part #
82F-81910-A0-00)

VOLTAGEREGULATORASSY | U.R.$59.99$47.913 In-Stock
997013-06012-00BOLT$6.49$5.0610+ In-Stock
1092995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1154G-82590-00-00WIRE HARNESS ASSEMBLY$37.99$31.15Not Shipping
1225G-83936-01-00BAND, SWITCH CORD$5.49$4.283 In-Stock
13437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
14437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
15437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
1690340-10003-00PLUG, STRAIGHT SCREW$9.49$7.404 In-Stock
1790430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
