1985 Yamaha BW200 Big Wheel Frame OEM Parts Diagram

Submodel BW200N - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

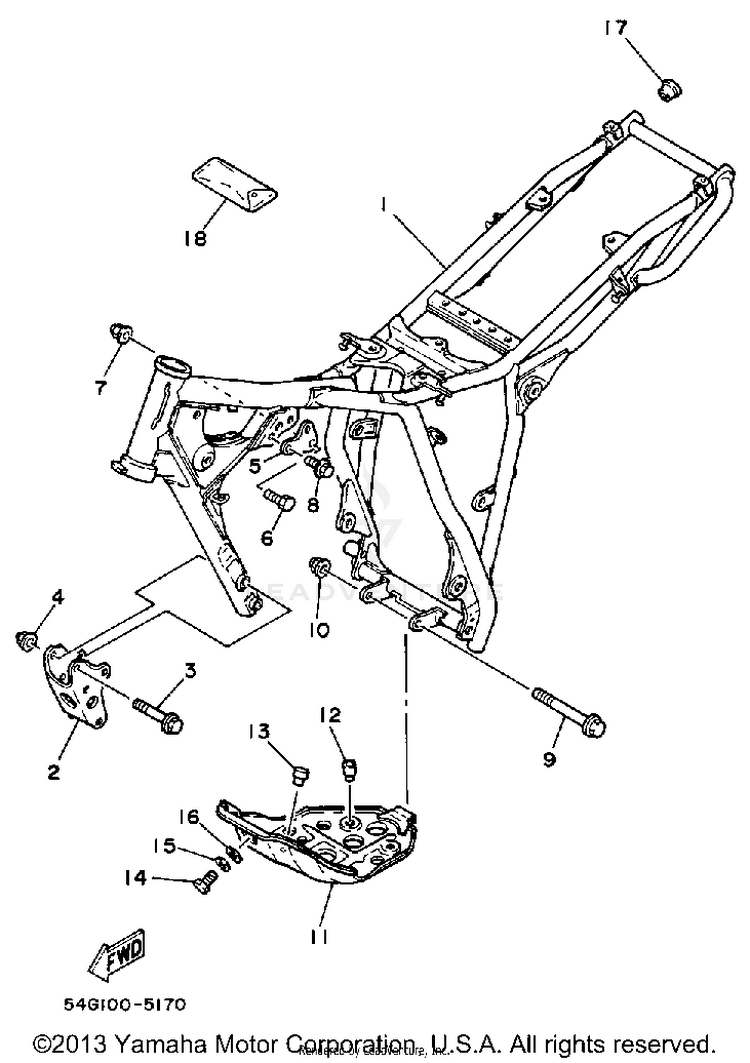

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
154G-21110-00-FHFRAME | FIRE RED$420.99$360.93Not Shipping
215A-21316-00-00STAY, ENGINE 3$24.99$20.49Not Shipping
395814-08065-00

(replaces part #
95811-08065-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
490185-08169-00

(replaces part #
95601-08200-00)

NUT, SELF-LOCKING$9.49$7.8910+ In-Stock
536X-21315-00-00STAY, ENGINE 2$18.99$15.57Usually ships in 7-10 business days
695817-08050-00

(replaces part #
95811-08050-00)

BOLT, FLANGE$3.70$3.1810+ In-Stock
790185-08169-00

(replaces part #
95601-08200-00)

NUT, SELF-LOCKING$9.49$7.8910+ In-Stock
890105-08066-00

(replaces part #
90105-08155-00)

BOLT, FLANGE$10.49$8.187 In-Stock
995817-08120-00

(replaces part #
95811-08120-00)

BOLT, FLANGE$5.49$4.284 In-Stock
1090185-08169-00

(replaces part #
95601-08200-00)

NUT, SELF-LOCKING$9.49$7.8910+ In-Stock
111RL-21471-00-35

(replaces part #
15A-21471-00-98)

PROTECTOR, ENGINE | LOW GLOSS BLK$134.99$105.29Usually ships in 7-10 business days
12128-27114-00-00STOPPER, MAIN STAND$8.49$6.623 In-Stock
133Y1-24768-00-00STOPPER$13.49$11.06Not Shipping
1497D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
1592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1690201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
1790338-18122-00PLUG, SPECL SHAPE$9.49$7.406 In-Stock
1854G-28100-00-00TOOL KIT$94.99$74.09Usually ships in 7-10 business days
