1985 Yamaha V-Max Generator OEM Parts Diagram

Submodel V MAX 1200 - VMX12NC - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

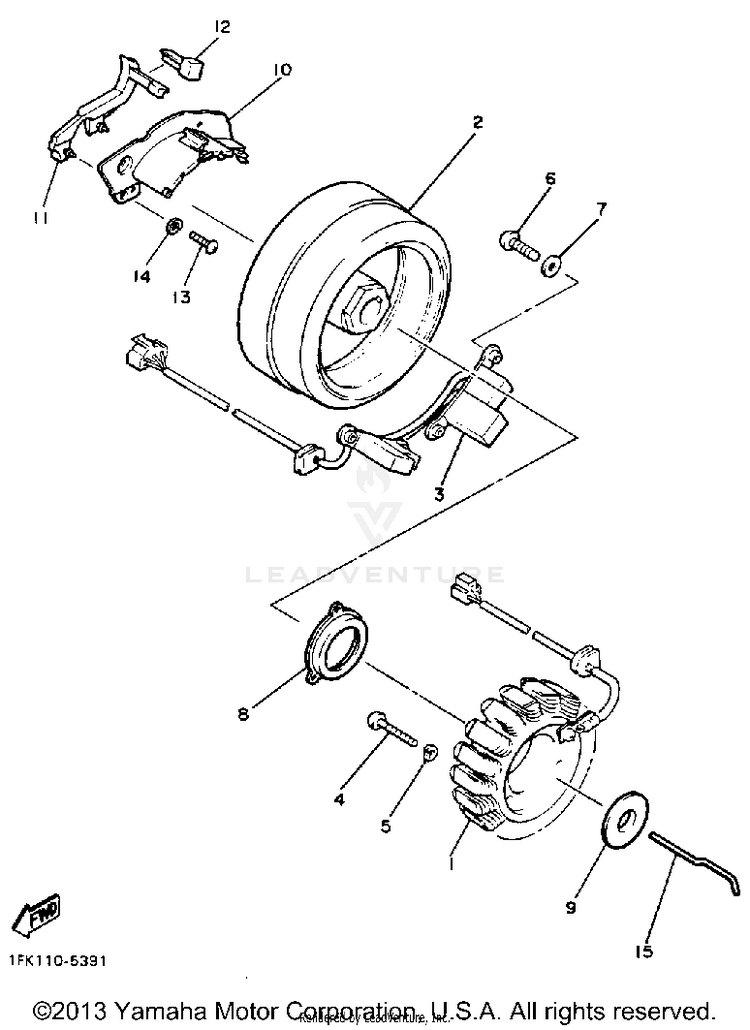

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11FK-81410-11-00STATOR ASSEMBLY$705.99$550.67Not Shipping
21FK-81450-10-00ROTOR ASSEMBLY$695.99$542.87Usually ships in 7-10 business days
326H-81670-10-00PICK-UP ASSEMBLY$461.99$360.35Not Shipping
498580-06545-00SCREW, PAN HEAD (92503-06045-00$6.49$5.4910+ In-Stock
592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
698507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
790201-06045-00

(replaces part #
90201-06643-00)

WASHER, PLATE$9.49$7.409 In-Stock
859-J1511-30-00UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
959-J1519-10-00UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
101F-K1535-80-00SEPARATOR, oil$0.00$0.00Not Shipping
111FK-15379-00-00SEAL, CRANKCASE$17.49$14.34Usually ships in 7-10 business days
121FK-15494-00-00SEAL, PROTECTOR$12.49$10.24Usually ships in 7-10 business days
1397885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1559-J1145-50-00UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping

Get additional RM Cash on OEM purchases!

Select parts to add, then click
