1985 Yamaha V-Max Shift Shaft OEM Parts Diagram

Submodel V MAX 1200 - VMX12NC - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

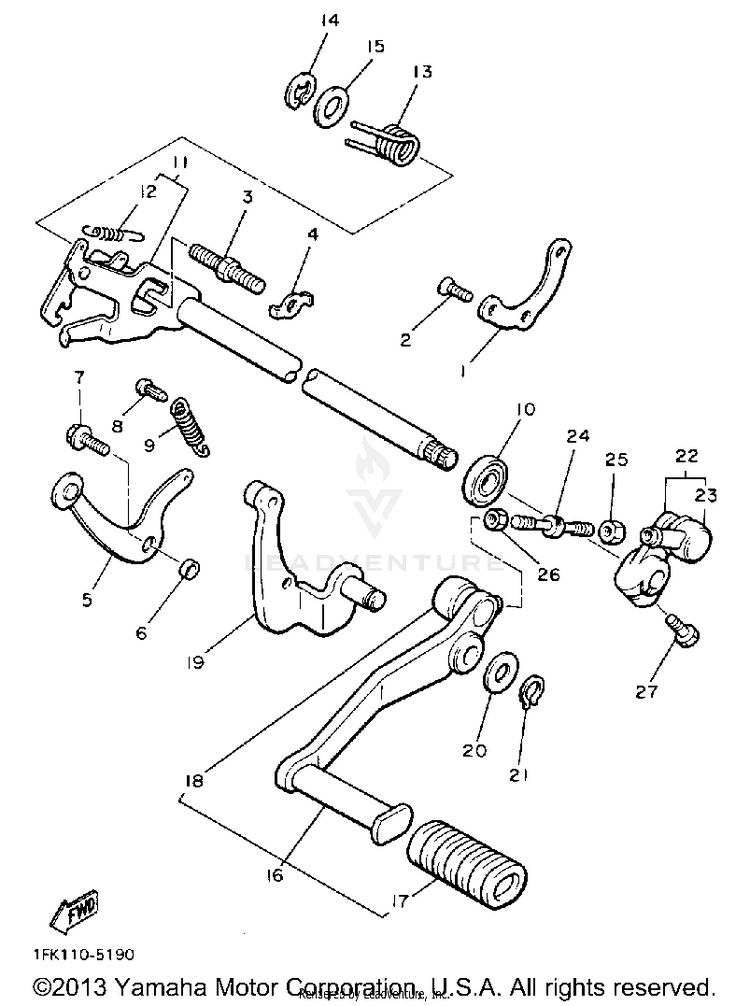

SHIFT SHAFT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
126H-18536-00-00STOPPER, SHIFT BAR$11.49$9.42Usually ships in 7-10 business days
298707-06014-00

(replaces part #
98701-06014-00)

SCREW, FLAT HEAD$9.49$7.4010+ In-Stock
390109-08441-00BOLT$9.49$8.54Usually ships in 7-10 business days
490215-08115-00WASHER, LOCK$8.49$7.64Usually ships in 7-10 business days
526H-18140-02-00

(replaces part #
26H-18140-01-00)

STOPPER LEVER ASSY$19.99$16.39Usually ships in 7-10 business days
690387-063F7-00COLLAR$9.49$7.402 In-Stock
790159-06016-00SCREW, WITH WASHER$3.65$3.1410+ In-Stock
8132-16346-00-00HOOK, SPRING$10.99$8.578 In-Stock
990506-13312-00SPRING, TENSION$1.75$1.58Usually ships in 7-10 business days
1093102-12321-00OIL SEAL (SD 12-22-5 HS)$13.49$10.5210+ In-Stock
111FK-18101-01-00

(replaces part #
1FK-18101-00-00)

SHIFT SHAFT ASSY$78.99$61.61Usually ships in 7-10 business days
1290506-08227-00SPRING, TENSION$4.55$3.913 In-Stock
1390508-32588-00SPRING, TORSION$6.49$5.84Usually ships in 7-10 business days
1499006-10600-00CIRCLIP$10.49$8.1810+ In-Stock
1590201-127E1-00WASHER, PLATE$4.65$4.009 In-Stock
161FK-18110-00-00SHIFT PEDAL ASSY$164.99$128.69Usually ships in 7-10 business days
1722N-18113-00-00COVER, SHIFT PEDAL$8.49$7.64Usually ships in 7-10 business days
182H9-18154-00-00COVER, DUST$5.99$4.768 In-Stock
191FK-18128-00-00BRACKET$112.99$88.13Usually ships in 7-10 business days
2090201-124E4-00WASHER, PLATE$10.49$8.1810+ In-Stock
2199009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
221FK-18152-00-00LEVER, SHIFT 4$100.99$78.77Usually ships in 7-10 business days
232H9-18154-00-00COVER, DUST$5.99$4.768 In-Stock
2442X-18115-00-00ROD, SHIFT$17.99$14.75Usually ships in 7-10 business days
2595380-06700-00NUT$9.49$7.404 In-Stock
2690170-06228-00NUT (COUNTER CLOCKWISE)$10.49$8.18
2797017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
