1985 Yamaha YZ80 Handlebar-Cable OEM Parts Diagram

Submodel YZ80N - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLEBAR-CABLE

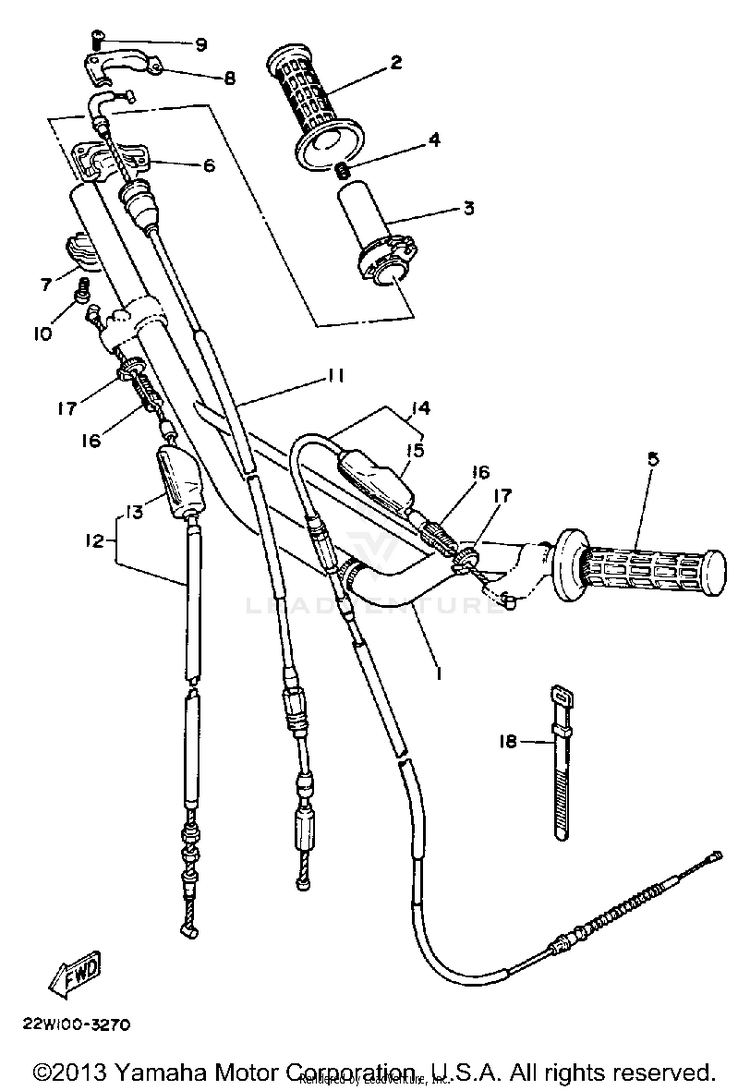

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14ES-26111-10-00HANDLEBAR$111.99$87.35Not Shipping
21LX-26242-01-00GRIP (RIGHT)$37.99$29.636 In-Stock
322W-26243-00-00TUBE, THROTTLE GUIDE$33.99$26.512 In-Stock
490338-12192-00PLUG$9.49$7.4010+ In-Stock
51LX-26241-01-00

(replaces part #
4V4-26241-01-00)

GRIP (LEFT)$36.99$28.854 In-Stock
65X2-26281-00-00CAP, GRIP UPPER$41.99$32.7510+ In-Stock
7322-26282-00-00CAP, GRIP UNDER | LOW GLOSS BLK$31.99$24.954 In-Stock
85X2-2628H-01-00CAP, WIRE$30.99$24.1710+ In-Stock
998707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
1090157-05M19-00

(replaces part #
98586-05016-00)

SCREW, PAN HEAD$3.75$3.224 In-Stock
1122W-26311-00-00CABLE, THROTTLE 1$27.99$22.95Not Shipping
1239K-26341-00-00CABLE, BRAKE$34.99$28.69Not Shipping
13498-26372-00-00

(replaces part #
382-26372-01-00)

COVER, HANDLE LEVER 1$34.99$27.296 In-Stock
1439K-26335-01-00CABLE, CLUTCH$26.99$22.13Usually ships in 7-10 business days
15498-26372-00-00

(replaces part #
382-26372-01-00)

COVER, HANDLE LEVER 1$34.99$27.296 In-Stock
1690123-08002-00

(replaces part #
90123-08013-00)

BOLT$10.49$8.1810+ In-Stock
1790179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
18437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
