1985 Yamaha YZ80 Shift Shaft OEM Parts Diagram

Submodel YZ80N - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT SHAFT

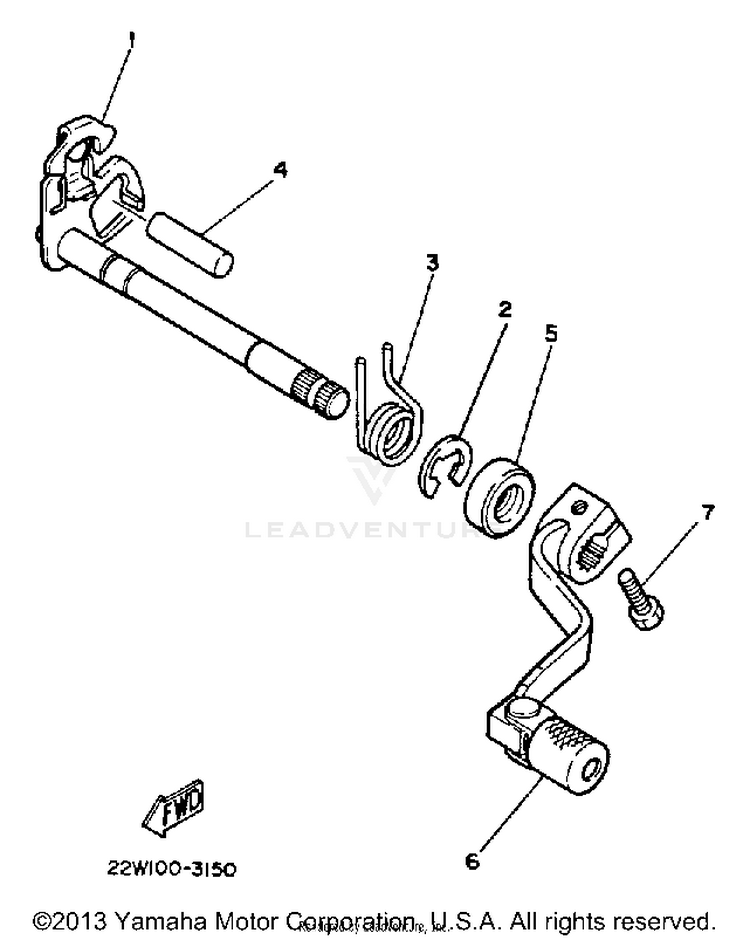

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
122W-18101-01-00SHIFT SHAFT ASSEMBLY.1$75.99$59.27Not Shipping
299006-10600-00CIRCLIP$10.49$8.1810+ In-Stock
390508-32642-00SPRING, TORSION$10.49$8.183 In-Stock
493608-30152-00PIN, DOWEL$3.50$3.15Not Shipping
593109-12012-00OIL SEAL$11.49$8.9610+ In-Stock
62HF-18110-02-00

(replaces part #
2HF-18110-01-00)

SHIFT PEDAL ASSY$58.99$46.015 In-Stock
797017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
