1987 Yamaha FZR1000 Front Master Cylinder 2 OEM Parts Diagram

Submodel FZR1000TC - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER 2

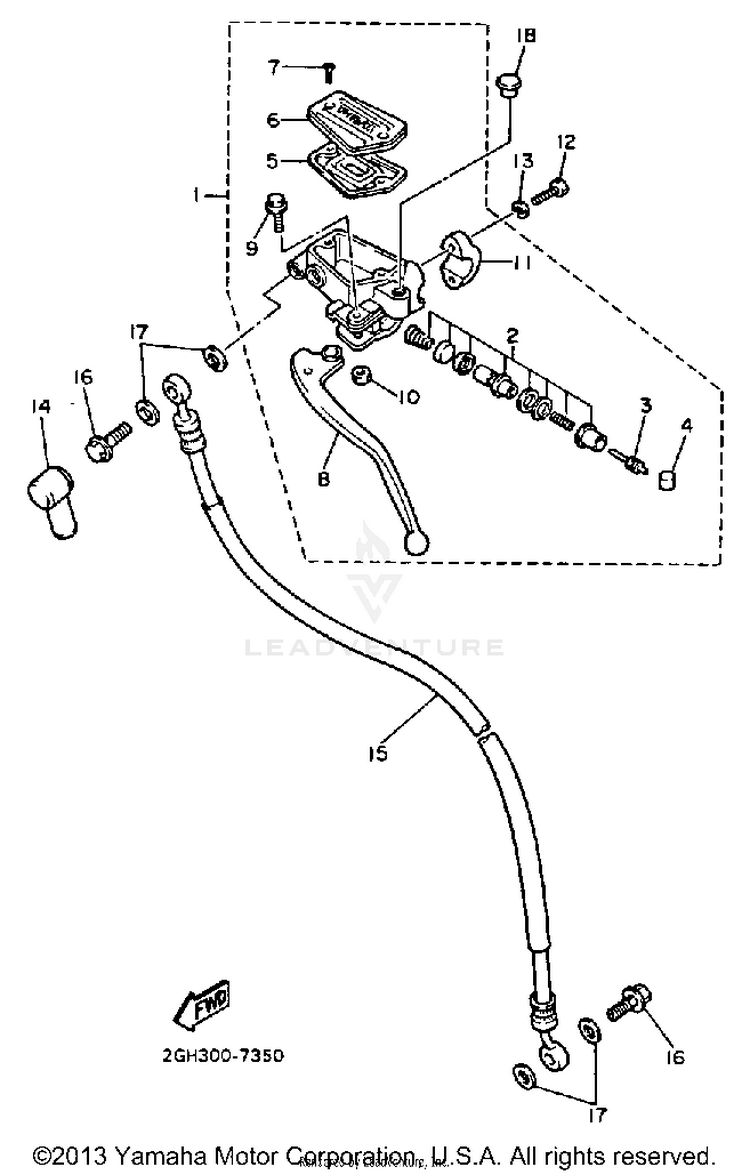

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12KW-W2645-00-00

(replaces part #
3BV-26450-10-00)

MASTER CYLINDER SUB ASSY$306.99$239.45Usually ships in 7-10 business days
22KW-W0099-00-00CYLINDER KIT, MASTER (CLUTCH)$66.99$52.254 In-Stock
326H-26464-00-00ROD, PUSH$30.99$25.41Usually ships in 7-10 business days
43GM-26455-00-00BUSH$27.99$21.832 In-Stock
51AE-26454-00-00DIAPHRAGM, RESERVOIR$31.99$26.23Usually ships in 7-10 business days
61FK-26452-01-00CAP, RESERVOIR$46.99$38.53Usually ships in 7-10 business days
798707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
81AE-83912-00-00LEVER L$47.99$39.35Usually ships in 7-10 business days
990109-067A0-00BOLT$3.30$2.97Usually ships in 7-10 business days
1095617-06100-00

(replaces part #
95616-06100-00)

NUT, U$2.90$2.4910+ In-Stock
111AE-26467-01-00

(replaces part #
1AE-26467-00-00)

HOLDER$11.99$9.83Usually ships in 7-10 business days
1291317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
1392907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
144L0-25862-02-00

(replaces part #
4L0-25862-00-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
153GM-26470-A1-00

(replaces part #
2GH-26470-01-00)

HOSE, CLUTCH$102.99$80.33Usually ships in 7-10 business days
1690401-10159-00

(replaces part #
90401-10096-00)

BOLT, UNION$12.49$9.7410+ In-Stock
1790201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
1890338-09012-00PLUG$10.49$8.186 In-Stock
