1987 Yamaha FZR1000 Handlebar Cable OEM Parts Diagram

Submodel FZR1000TC - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

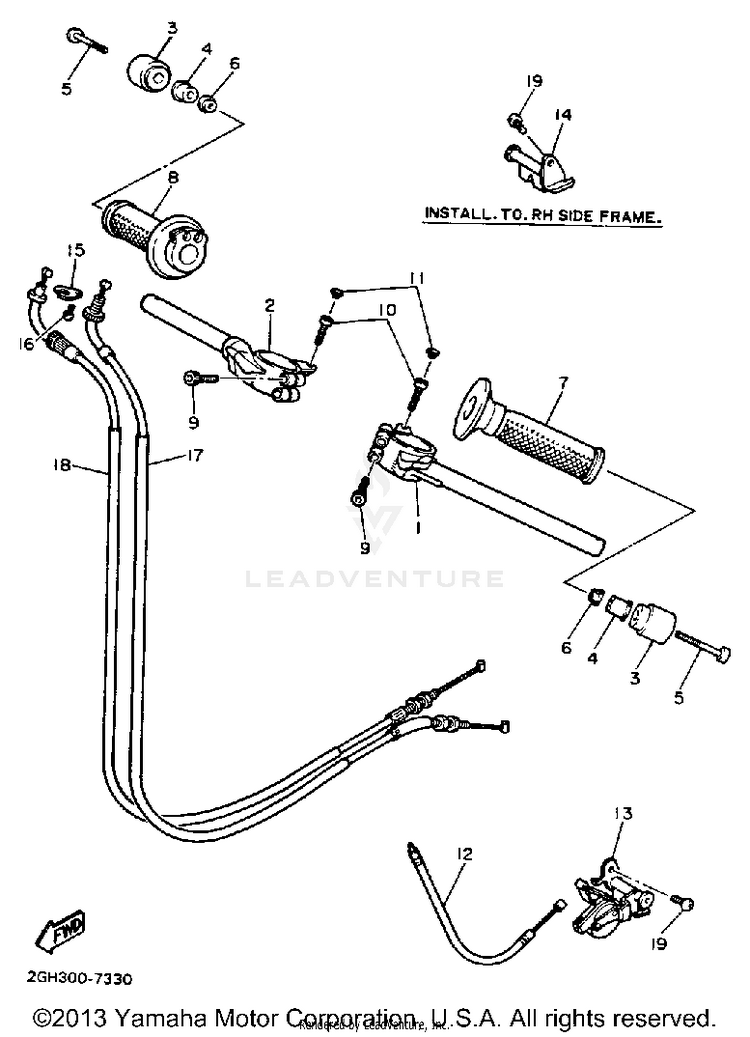

HANDLEBAR CABLE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GH-26121-00-00HANDLEBAR LH$126.99$99.05Not Shipping
22GH-26122-00-00HANDLEBAR RH$141.99$110.75Not Shipping
32GH-26246-10-00END GRIP$33.99$27.87Usually ships in 7-10 business days
42GH-2622F-00-00DAMPER, LOCATING 1$7.99$7.19Usually ships in 7-10 business days
591317-06070-00

(replaces part #
91316-06070-00)

BOLT, HEX. SOCKET HEAD$5.49$4.2810+ In-Stock
695707-06500-00

(replaces part #
95706-06500-00)

NUT, FLANGE$1.00$0.9910+ In-Stock
747X-26241-00-00GRIP (LEFT)$34.99$28.69Usually ships in 7-10 business days
847X-26240-00-00GRIP ASSEMBLY$53.99$42.11Usually ships in 7-10 business days
991317-08030-00

(replaces part #
91316-08030-00)

BOLT, HEX.S OCKET HEAD$9.49$7.4010+ In-Stock
1091317-06035-00

(replaces part #
90110-06157-00)

BOLT, HEX. SOCKET HEAD$3.90$3.356 In-Stock
1110L-23469-00-00CAP, BOLT$5.99$5.39Usually ships in 7-10 business days
122GH-26331-00-00CABLE, STARTER 1$16.99$13.93Usually ships in 7-10 business days
132GH-83940-01-00

(replaces part #
2GH-83940-00-00)

STARTER ASSY$145.99$113.87Usually ships in 7-10 business days
142GH-2832U-00-00STAY, SIDE 1$51.99$40.55Usually ships in 7-10 business days
155H0-26393-00-00HOLDER$8.49$7.64Usually ships in 7-10 business days
1698507-05008-00

(replaces part #
98506-05008-00)

SCREW, PAN HEAD$3.85$3.3110+ In-Stock
172GH-26312-00-00CABLE, THROTTLE 2$18.44$15.12Usually ships in 7-10 business days
1899999-02483-00

(replaces part #
2GH-26311-00-00)

CABLE, THROTTLE 1$74.99$58.49Usually ships in 7-10 business days
1992017-06020-00

(replaces part #
92016-06020-00)

BOLT, BUTTON HEAD$4.05$3.488 In-Stock
