1987 Yamaha TT225 Front Master Cylinder OEM Parts Diagram

Submodel TT225T - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

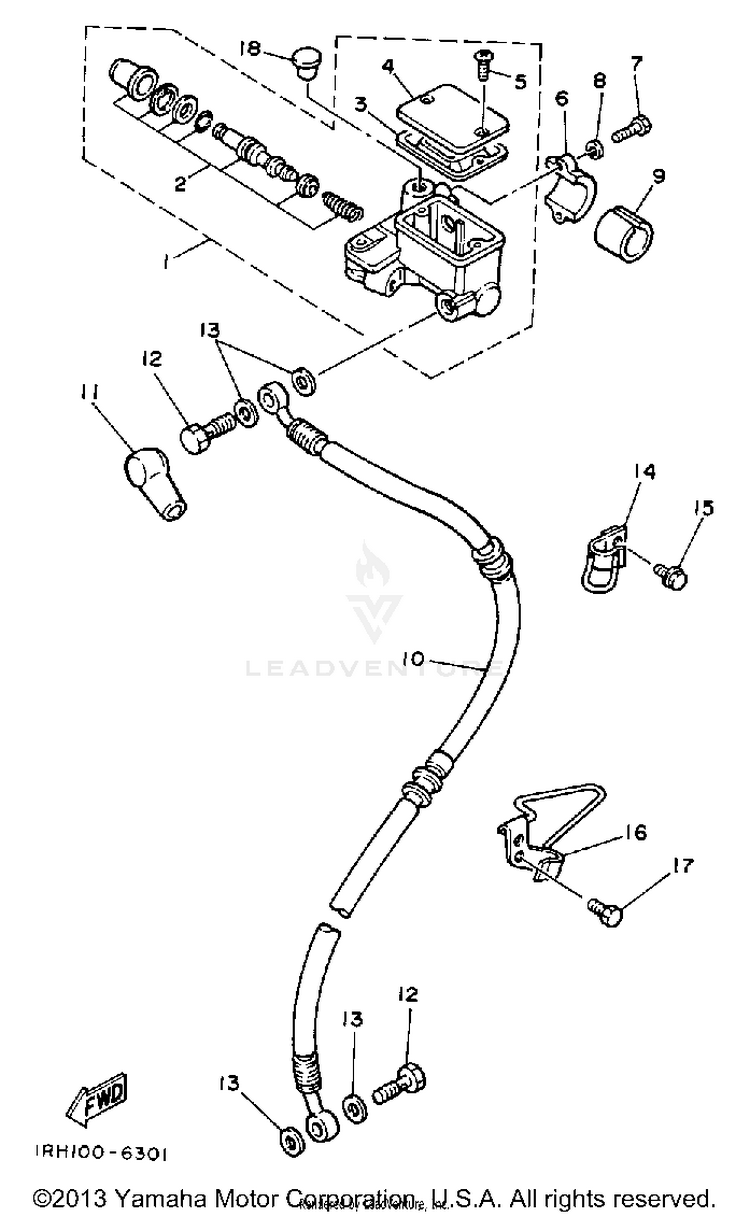

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15CG-2583T-12-00

(replaces part #
59X-25850-00-00)

MASTER CYLINDER ASSY$250.99$195.77Usually ships in 7-10 business days
25VK-25807-00-00

(replaces part #
59X-W0041-00-00)

CYL KIT,MASTER$76.99$60.05Usually ships in 7-10 business days
355U-25854-00-00DIAPHRAGM, RESERVOIR$30.99$25.412 In-Stock
42KF-25852-02-00

(replaces part #
2KF-25852-01-00)

CAP, RESERVOIR (FRON$29.99$24.59Not Shipping
598517-04012-00

(replaces part #
98506-04012-00)

SCREW,PANHEAD$4.20$3.6110+ In-Stock
656A-25867-00-00BRACKET, MASTER CYLINDER$31.99$24.953 In-Stock
797017-06025-00

(replaces part #
97016-06025-00)

BOLT$4.55$3.9110+ In-Stock
892907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
990387-224L9-00COLLAR$11.49$9.421 In-Stock
1099999-02568-00

(replaces part #
34X-25872-01-00)

HOSE, BRAKE 1$160.99$125.57Usually ships in 7-10 business days
114L0-25862-02-00

(replaces part #
4L0-25862-00-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
1290401-10159-00

(replaces part #
90401-10034-00)

BOLT, UNION$12.49$9.7410+ In-Stock
1390201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
1434X-25875-00-00HOLDER, BRKE HOSE 1$2.77$2.49Usually ships in 7-10 business days
1590119-06108-00BOLT, WITH WASHER$9.49$8.549 In-Stock
1634X-25876-00-00HOLDER, BRAKE HOSE 2$17.99$14.75Usually ships in 7-10 business days
1791317-06010-00

(replaces part #
91316-06010-00)

BOLT$10.49$8.184 In-Stock
1890338-09012-00PLUG$10.49$8.186 In-Stock
