1987 Yamaha TT225 Side Cover OEM Parts Diagram

Submodel TT225T - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

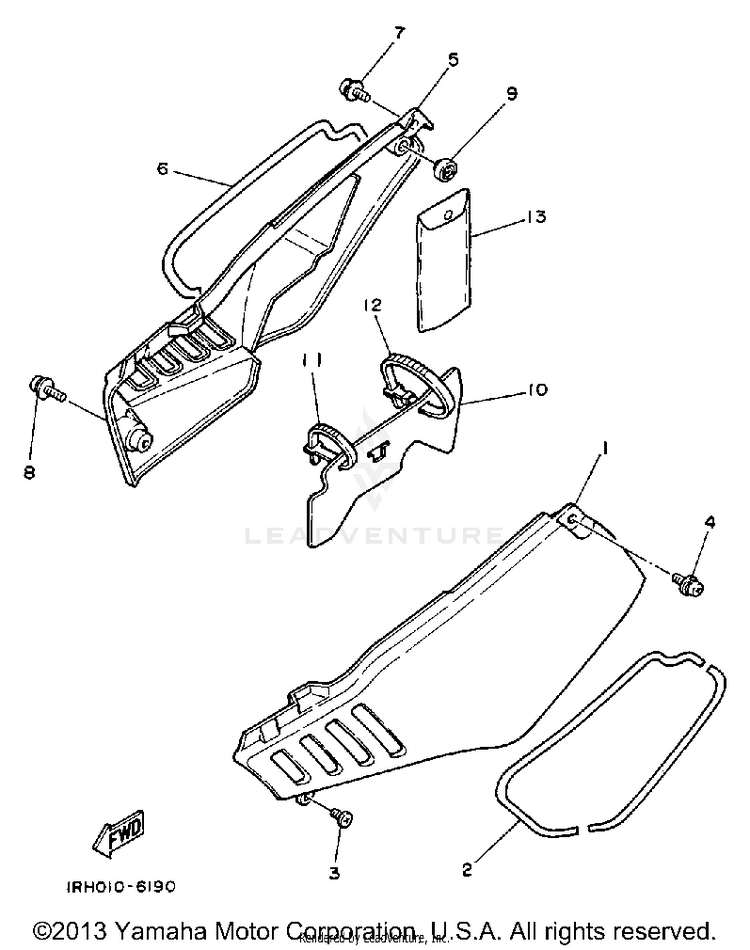

SIDE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11RH-21711-00-00COVER, SIDE 1 | CLEAN WHITE$187.99$146.63Not Shipping
21RH-2173L-10-00GRAPHIC SET 1$26.99$22.13Not Shipping
390154-05013-00SCREW, BINDING$6.49$5.0610+ In-Stock
490159-06082-00SCREW, WITH WASHER$10.49$8.1810+ In-Stock
51RH-21721-00-98COVER, SIDE 2 | LOW GLOSS BLK/WHT$184.99$144.29Not Shipping
61RH-2174L-10-00GRAPHIC SET 2$21.99$18.03Not Shipping
790159-06082-00SCREW, WITH WASHER$10.49$8.1810+ In-Stock
890159-06135-00SCREW, W/WASHER$1.59$1.43Not Shipping
922W-24181-00-00DAMPER, LOCATING 1$7.49$5.8410+ In-Stock
101RH-2177F-00-00COVER$3.76$3.38Not Shipping
11437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
12437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
1336X-W2810-00-00

(replaces part #
1RH-28100-00-00)

TOOL KIT (5H0-28100-10-00)$95.99$74.87Usually ships in 7-10 business days
