CRANKCASE COVER

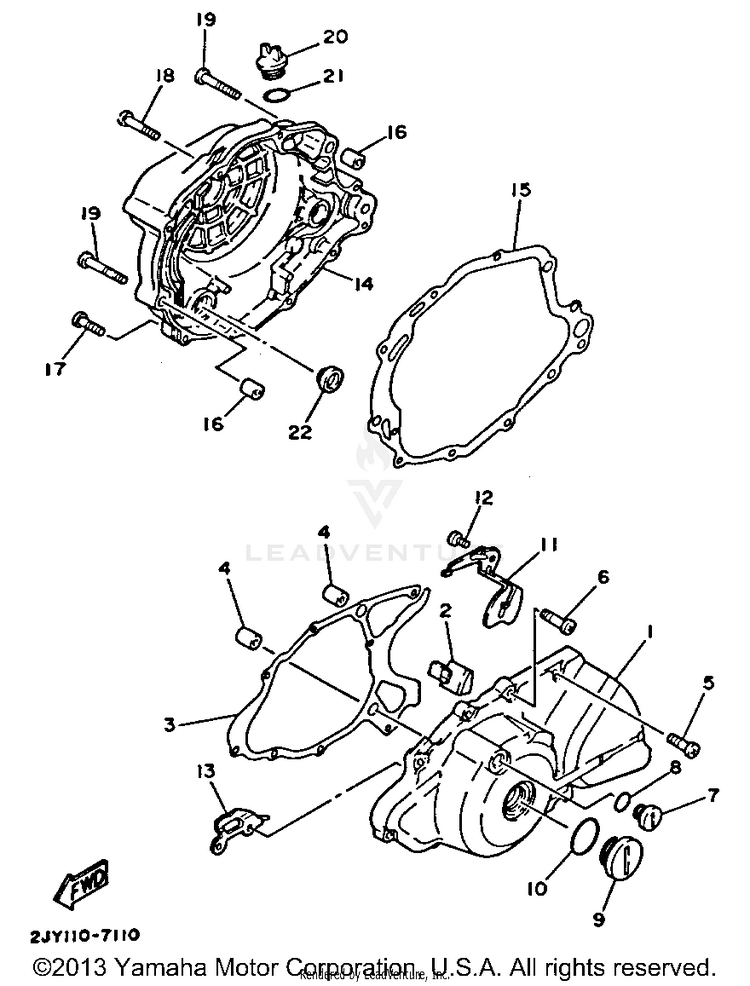

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-90338-21100-00PLUG$5.49$4.94Usually ships in 7-10 business days
-90999-01932-00UNAVAILABLE IN PRICE BOOK (15A-$0.00$0.00Not Shipping
12JX-15410-00-00CRCS COVER ASSEMBLY LASS''Y 1$424.99$331.49Usually ships in 7-10 business days
22JX-15377-00-00GUIDE, INLET$35.99$28.072 In-Stock
33AW-15451-03-00

(replaces part #
3AW-15451-00-00)

GASKET, CRANKCASE COVER 1$18.99$14.8110+ In-Stock
499530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
598517-06025-00

(replaces part #
98506-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
698507-06035-00

(replaces part #
98506-06035-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
790340-14079-00PLUG, STRAIGHT SCREW$20.99$16.372 In-Stock
893210-14369-00O-RING$8.49$6.6210+ In-Stock
990340-32080-00PLUG, STRAIGHT SCREW$35.99$28.072 In-Stock
1093210-32172-00O-RING$8.49$6.6210+ In-Stock
1190465-08300-00CLAMP$12.99$10.65Usually ships in 7-10 business days
1298580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.409 In-Stock
1390462-16096-00CLAMP$6.49$5.84Not Shipping
1447J-15431-01-00COVER, CRANKCASE 3$274.99$214.49Not Shipping
154BE-15462-00-00GASKET, CRANKCASE COVER 3$37.99$29.6310+ In-Stock
1699530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
1798517-06025-00

(replaces part #
98506-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
1898507-06035-00

(replaces part #
98506-06035-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1998507-06045-00

(replaces part #
98506-06045-00)

SCREW, PAN HEAD$3.40$2.9210+ In-Stock
203Y1-15363-10-00

(replaces part #
1RG-15363-00-00)

PLUG, OIL$19.99$15.5910+ In-Stock
2193210-19123-00O-RING$8.99$7.0110+ In-Stock
223Y1-15361-00-00GAUGE, LEVEL$33.99$26.5110+ In-Stock
