1987 Yamaha TW200 Trailway Side Cover OEM Parts Diagram

Submodel TRAILWAY - TW200TC - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SIDE COVER

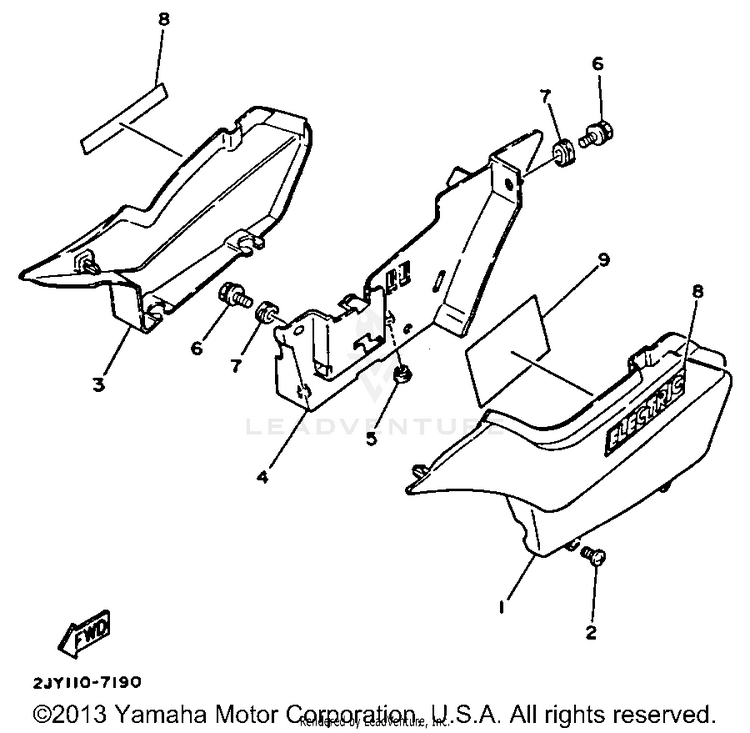

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-2JX-21781-10-00EMBLEM 1 | Use for Color WHITE ( W / 0036 )$10.99$9.01Not Shipping
-2JX-21687-70-00PLATE, SPECIFICATIN | UR CALIF. ONLY$2.58$2.32Usually ships in 7-10 business days
12JX-21711-00-98COVER, SIDE 1 | LOW GLOSS BLK$79.99$62.39Not Shipping
290154-05013-00SCREW, BINDING$6.49$5.0610+ In-Stock
32JX-21721-00-98COVER, SIDE 2 | LOW GLOSS BLK$143.99$112.31Usually ships in 7-10 business days
42JX-2177A-00-00BOX$88.99$69.41Usually ships in 7-10 business days
590480-13014-00

(replaces part #
90480-13398-00)

GROMMET$9.49$7.4010+ In-Stock
690119-06152-00

(replaces part #
90119-06056-00)

BOLT, WITH WASHER$3.55$3.0510+ In-Stock
790480-01401-00GROMMET (41Y)$9.49$7.4010+ In-Stock
82JX-21781-00-00EMBLEM 1 | Use for Color WHITE ( W / 0036 )$10.99$9.01Not Shipping
92JY-21683-70-00PLATE, SPECIFICATON | UR NON-CA.$28.99$23.77Usually ships in 7-10 business days
