1988 Yamaha DT50 Meter OEM Parts Diagram

Submodel DT50LC - 1988

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

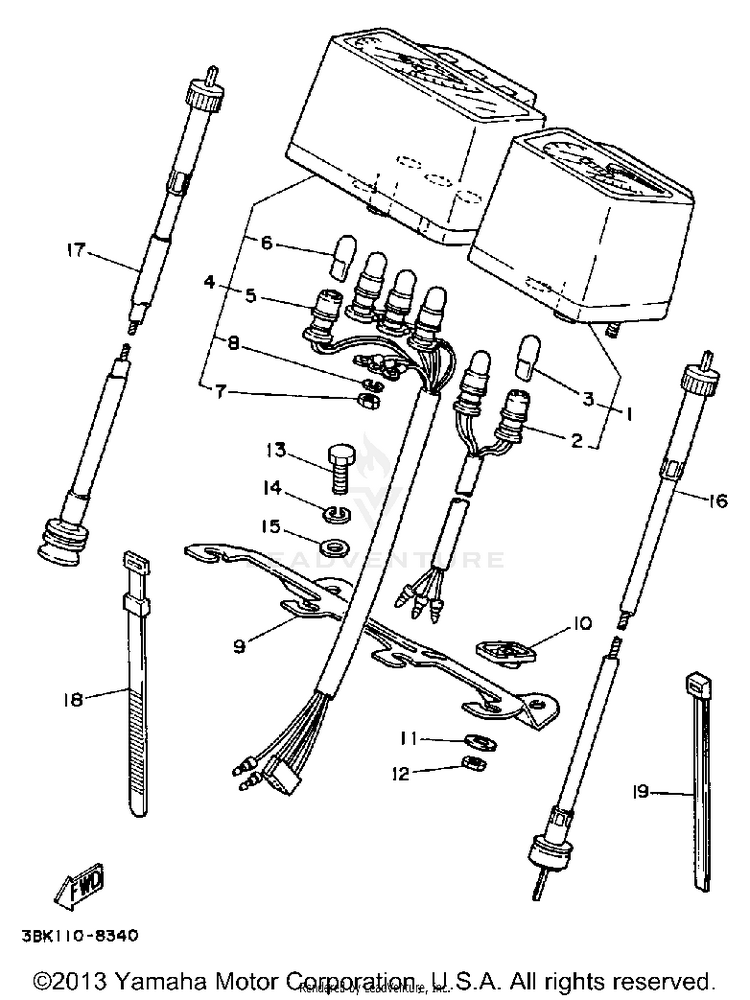

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13BK-83510-00-00SPEDOMETER ASSEMBLY$187.99$146.63Usually ships in 7-10 business days
23BK-83536-00-00SOCKET, METER$26.35$21.61Usually ships in 7-10 business days
34N0-83516-00-00BULB (6V-3W)$3.60$3.249 In-Stock
43BK-83540-00-00TACHOMETER ASSEMBLY$321.99$251.15Usually ships in 7-10 business days
53BK-83509-00-00SOCKET CORD ASSEMBLY$31.99$26.23Usually ships in 7-10 business days
64N0-83516-00-00BULB (6V-3W)$3.60$3.249 In-Stock
795304-03700-00

(replaces part #
95301-03700-00)

NUT, HEXAGON SMALL$0.45$0.40Usually ships in 7-10 business days
892990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
954A-83519-00-00BRACKET, METER$37.99$31.15Usually ships in 7-10 business days
1017W-83523-00-00DAMPER$9.99$8.99Usually ships in 7-10 business days
1190201-05032-00

(replaces part #
90201-052E2-00)

WASHER, PLATE$9.49$8.54Usually ships in 7-10 business days
1295317-05600-00

(replaces part #
95306-05600-00)

NUT$2.50$2.153 In-Stock
1397017-06016-00

(replaces part #
97016-06016-00)

BOLT$9.49$7.405 In-Stock
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1592907-06600-00

(replaces part #
92906-06600-00)

WASHER, PLATE$1.00$0.9910+ In-Stock
1617W-83550-01-00SPEEDOMETER CABLE$36.99$32.41Not Shipping
1737A-83560-01-00

(replaces part #
37A-83560-00-00)

TACHOMETER CABLE$35.99$29.51Usually ships in 7-10 business days
1825G-83936-01-00BAND, SWITCH CORD$5.49$4.283 In-Stock
191UA-82591-00-00

(replaces part #
90465-13169-00)

BAND$5.49$4.2810+ In-Stock
