1989 Yamaha TW200 Trailway Exhaust OEM Parts Diagram

Submodel TRAILWAY - TW200WC - 1989

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

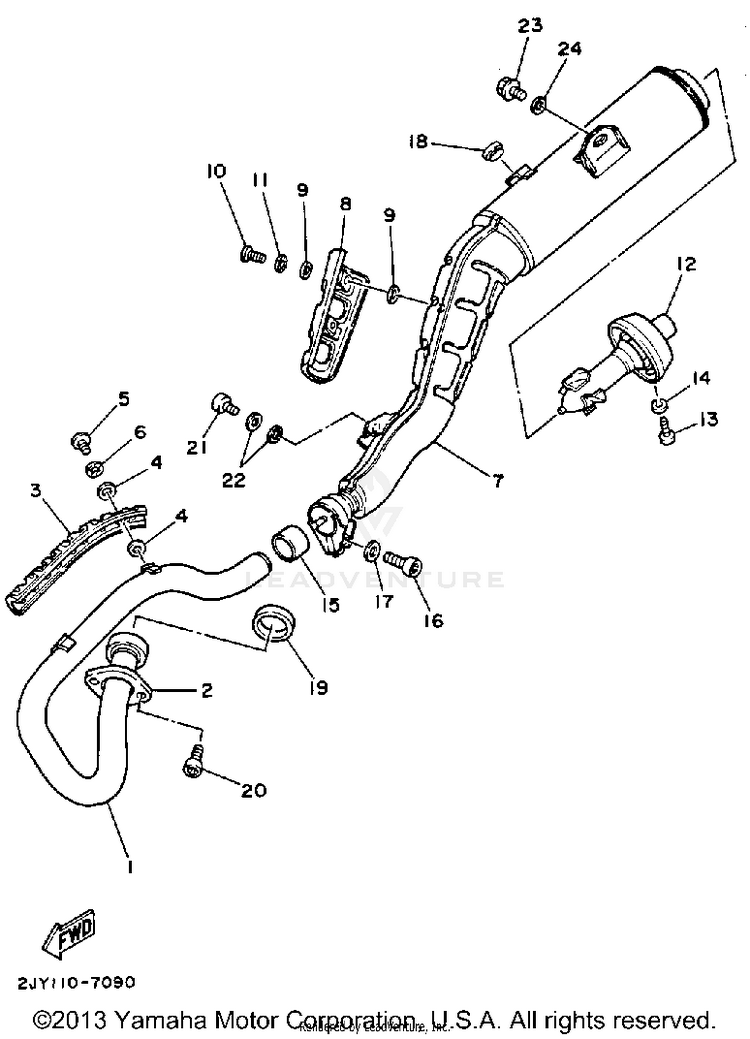

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12JX-14611-03-00

(replaces part #
2JX-14611-01-00)

PIPE, EXHAUST 1$52.99$41.33Usually ships in 7-10 business days
25H0-14612-01-00

(replaces part #
5H0-14612-00-00)

NUT, RING$17.99$14.033 In-Stock
354G-14628-01-00PROTECTOR, EXHAUST PIPE$41.99$34.43Not Shipping
490202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
590164-06017-00SCREW, TAPPING$9.49$8.546 In-Stock
690206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
72JX-14711-00-00MUFFLER 1$333.32$259.99Not Shipping
82JX-14728-00-00PROTECTOR, MUFFLER 2$126.99$99.05Usually ships in 7-10 business days
990202-05191-00

(replaces part #
90430-06012-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
1098907-06010-00

(replaces part #
98906-06010-00)

SCREW, BIND$1.80$1.558 In-Stock
1190206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
121RH-14752-01-00

(replaces part #
1RH-14752-00-00)

PIPE, OUTLET$153.99$120.11Usually ships in 7-10 business days
1398580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.409 In-Stock
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
153YF-14714-00-00

(replaces part #
1JK-14714-00-00)

GASKET, MUFFLER$39.99$31.1910+ In-Stock
1691317-08025-00

(replaces part #
91316-08025-00)

BOLT$9.49$7.407 In-Stock
1792907-08600-00

(replaces part #
92906-08600-00)

WASHER, PLATE$3.25$2.80
1822W-24181-00-00DAMPER, LOCATING 1$7.49$5.8410+ In-Stock
194BE-14613-00-00GASKET, EXHAUST PIPE$10.99$8.5710+ In-Stock
2091317-06020-00

(replaces part #
91316-06020-00)

BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
2191317-08016-00

(replaces part #
91316-08016-00)

BOLT$9.49$7.4010+ In-Stock
2290201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
2395817-08016-00

(replaces part #
95811-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
2490201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
