1989 Yamaha TW200 Trailway Shift Shaft OEM Parts Diagram

Submodel TRAILWAY - TW200WC - 1989

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT SHAFT

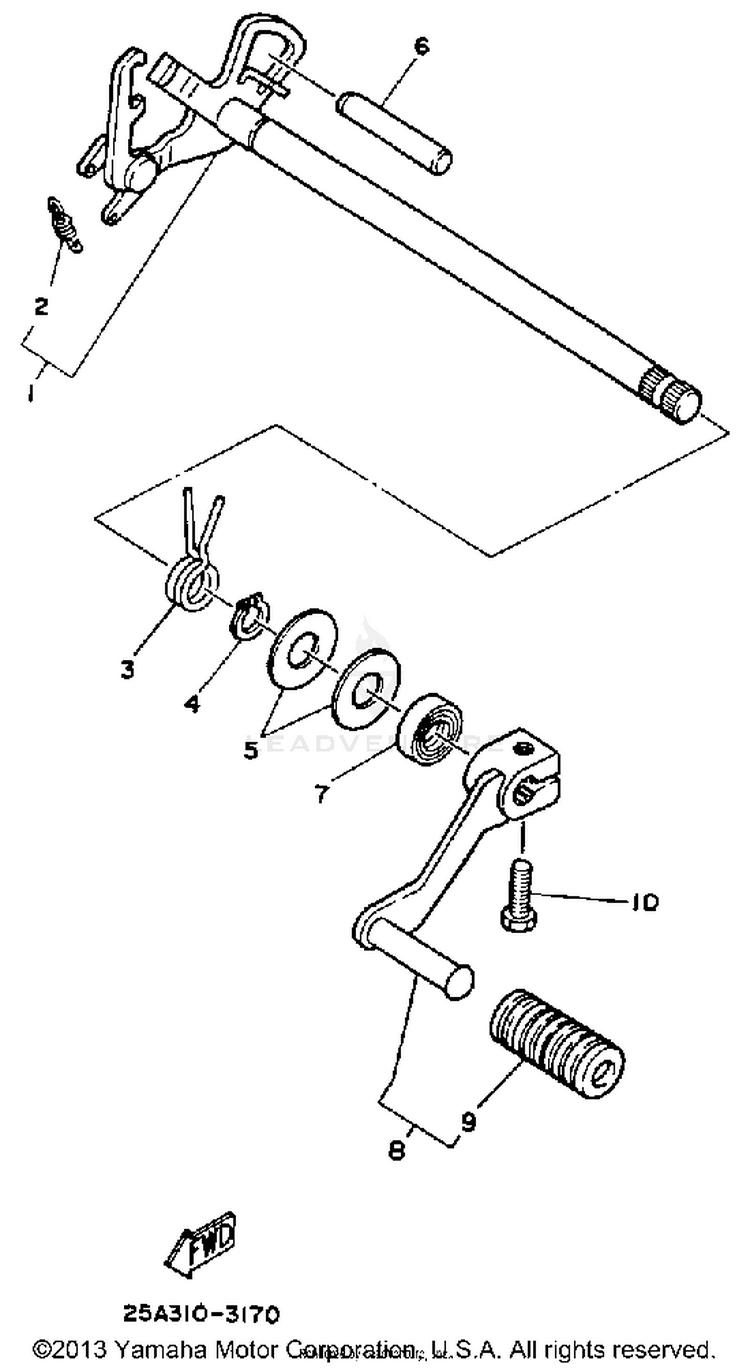

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15H0-18120-02-00SHIFT LEVER ASSY$117.99$92.032 In-Stock
290506-08227-00SPRING, TENSION$4.55$3.913 In-Stock
390508-29540-00SPRING, TORSION$8.49$7.64Usually ships in 7-10 business days
499006-10600-00CIRCLIP$10.49$8.1810+ In-Stock
590201-12588-00WASHER, PLATE$8.49$6.624 In-Stock
693608-50158-00PIN, DOWEL$9.49$8.54Usually ships in 7-10 business days
793102-12321-00OIL SEAL (SD 12-22-5 HS)$13.49$10.5210+ In-Stock
81RL-18110-00-00SHIFT PEDAL ASSY$30.99$24.174 In-Stock
9132-18113-01-00COVER, CHANGE PEDAL$8.49$6.6210+ In-Stock
1097017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
