1990 Yamaha DT50 Crankshaft - Piston OEM Parts Diagram

Submodel ENDURO - DT50A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT - PISTON

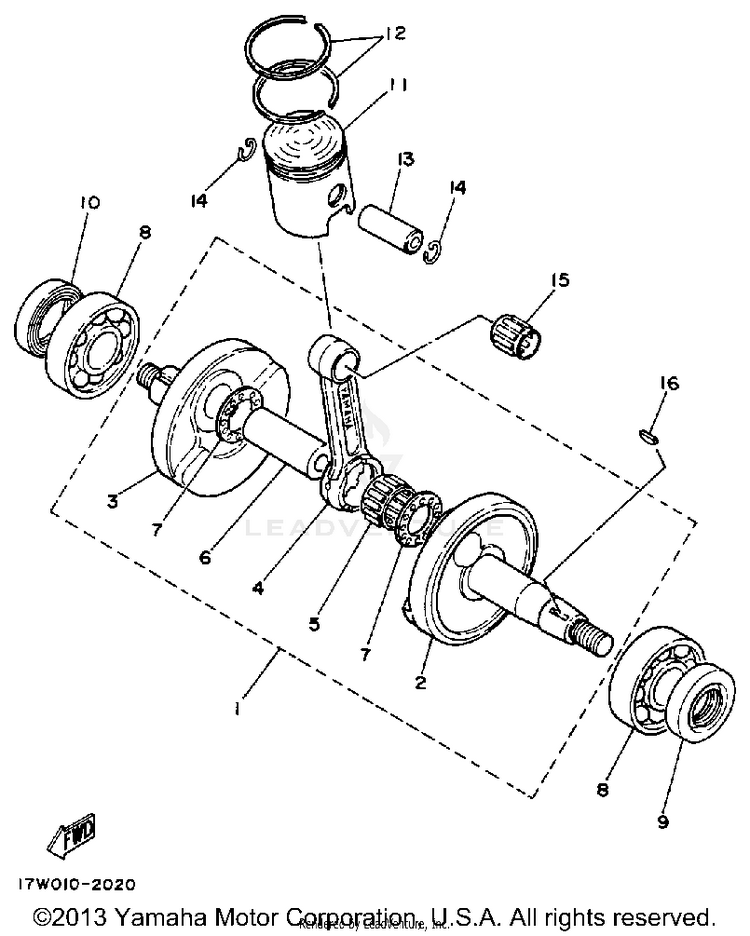

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-17W-11635-00-00PISTON 1 O/S 0.25 | ALT. PART$83.99$65.51Usually ships in 7-10 business days
-17W-11636-00-00PISTON 2 O/S 0.50 | ALT. PART$83.99$65.51Not Shipping
-4EU-11604-30-00

(replaces part #
12Y-11610-60-00)

PISTON RING SET | ALT. PART$42.99$35.25Usually ships in 7-10 business days
-4EU-11605-30-00

(replaces part #
12Y-11610-70-00)

PSTN RNG SET | ALT. PART$46.99$38.53Usually ships in 7-10 business days
13BK-11400-00-00CRANKSHAFT ASSEMBLY$406.99$317.45Usually ships in 7-10 business days
23BK-11412-00-00CRANK 1$61.69$48.12Usually ships in 7-10 business days
33BK-11422-00-00CRANK 2$61.69$48.12Usually ships in 7-10 business days
43R1-11651-01-00ROD, CONNECTING (3R1-11651-00$136.99$106.85Usually ships in 7-10 business days
593310-418C4-00BEARING CYLINDER #10$52.99$41.332 In-Stock
64V0-11681-00-00PIN, CRANK 1$55.99$43.67Not Shipping
790209-18112-00WASHER$11.49$8.9610+ In-Stock
893306-20458-00BEARING$47.99$37.433 In-Stock
993102-20447-00OIL SEAL$12.49$9.748 In-Stock
1093103-28011-00OIL SEAL, SW-TYPE (93103-28100)$16.49$12.8610+ In-Stock
1117W-11631-00-97PISTON STD$77.99$60.83Usually ships in 7-10 business days
124EU-11603-30-00

(replaces part #
12Y-11610-50-00)

PISTON RING SET$43.99$36.07Usually ships in 7-10 business days
13517-11633-00-00PIN, PISTON$17.99$14.031 In-Stock
1493450-13022-00CIRCLIP$9.49$7.408 In-Stock
1593310-11268-00BEARING$38.99$30.418 In-Stock
1690280-03017-00KEY, WOODRUFF$8.49$6.8310+ In-Stock
