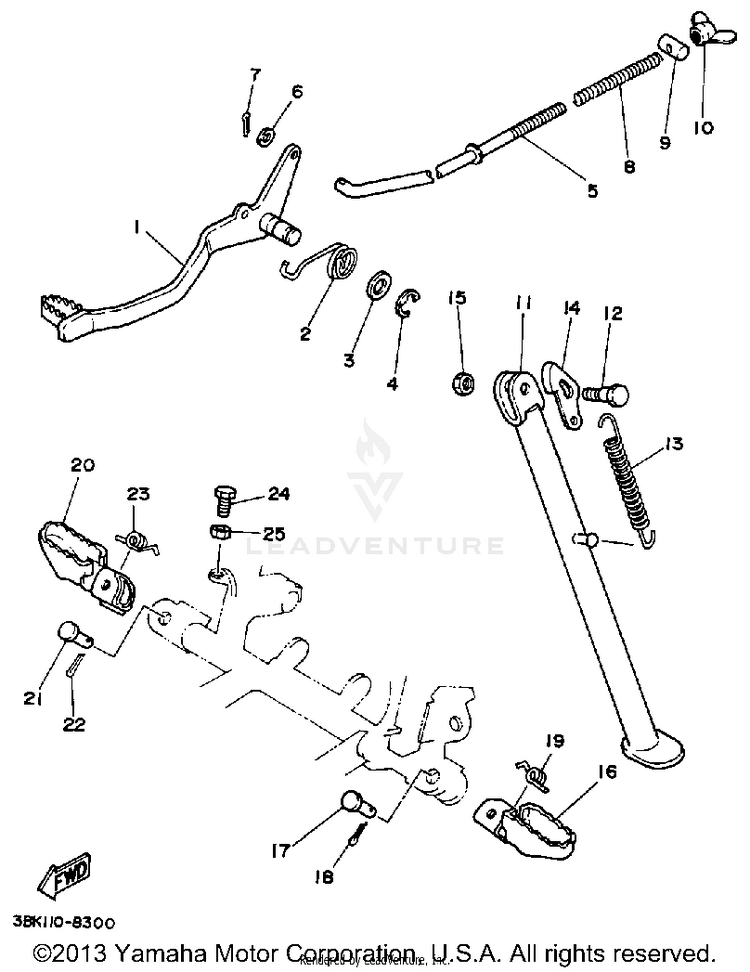

1990 Yamaha DT50 Stand - Footrest OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	33J-27200-00-00 (replaces part # 17W-27211-01-00)	PEDAL, BRAKE	$52.99	$41.33	Usually ships in 7-10 business days
2	90508-32560-00	SPRING, TORSION	$6.99	$6.29	Usually ships in 7-10 business days
3	90201-14212-00	WASHER, PLATE	$9.49	$7.40	3 In-Stock
4	93430-10015-00	CIRCLIP	$9.49	$7.40	8 In-Stock
5	17W-27231-00-00	ROD, BRAKE	$10.99	$9.01	Usually ships in 7-10 business days
6	92990-06600-00 (replaces part # 92901-06600-00)	WASHER, PLAIN (646)	$2.95	$2.79	7 In-Stock
7	91490-20025-00 (replaces part # 91490-20020-00)	PIN, COTTER	$1.99	$1.71	10+ In-Stock
8	90501-10245-00	SPRING, COMPRESSION	$9.49	$7.40	10+ In-Stock
9	90249-12008-00	PIN, SPECIAL SHAPE	$9.49	$7.40	10+ In-Stock
10	90179-06411-00	NUT, SPECIAL SHAPE	$9.49	$7.40	9 In-Stock
11	17W-27311-02-00	STAND, SIDE	$52.99	$41.33	Usually ships in 7-10 business days
12	90109-08032-00	BOLT	$9.49	$7.40	4 In-Stock
13	4KN-27116-00-00 (replaces part # 90506-29360-00)	SPRING,TENSION	$14.49	$11.30	4 In-Stock
14	5Y1-27315-00-00	LINK, SIDE STAND	$16.49	$12.86	2 In-Stock
15	90185-08055-00	NUT, SELF-LOCKING	$10.49	$8.18	9 In-Stock
16	22W-27411-01-90	FOOTREST 1 \| UNI CHROME	$35.99	$28.07	1 In-Stock
17	91701-08038-00	PIN	$4.45	$3.83	10+ In-Stock
18	91490-20025-00 (replaces part # 91490-20020-00)	PIN, COTTER	$1.99	$1.71	10+ In-Stock
19	90508-20023-00	SPRING, TORSION	$4.25	$3.66	10+ In-Stock
20	22W-27421-01-90	FOOTREST 2 (3R1-27421-00) \| UNI CHROME	$35.99	$28.07	6 In-Stock
21	91701-08038-00	PIN	$4.45	$3.83	10+ In-Stock
22	91490-20025-00 (replaces part # 91490-20020-00)	PIN, COTTER	$1.99	$1.71	10+ In-Stock
23	90508-20023-00	SPRING, TORSION	$4.25	$3.66	10+ In-Stock
24	97017-06020-00 (replaces part # 97011-06020-00)	BOLT	$4.06	$3.49	10+ In-Stock
25	95380-06700-00	NUT	$9.49	$7.40	4 In-Stock
