1990 Yamaha TW200 Seat OEM Parts Diagram

Submodel TRAILWAY - TW200AC - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

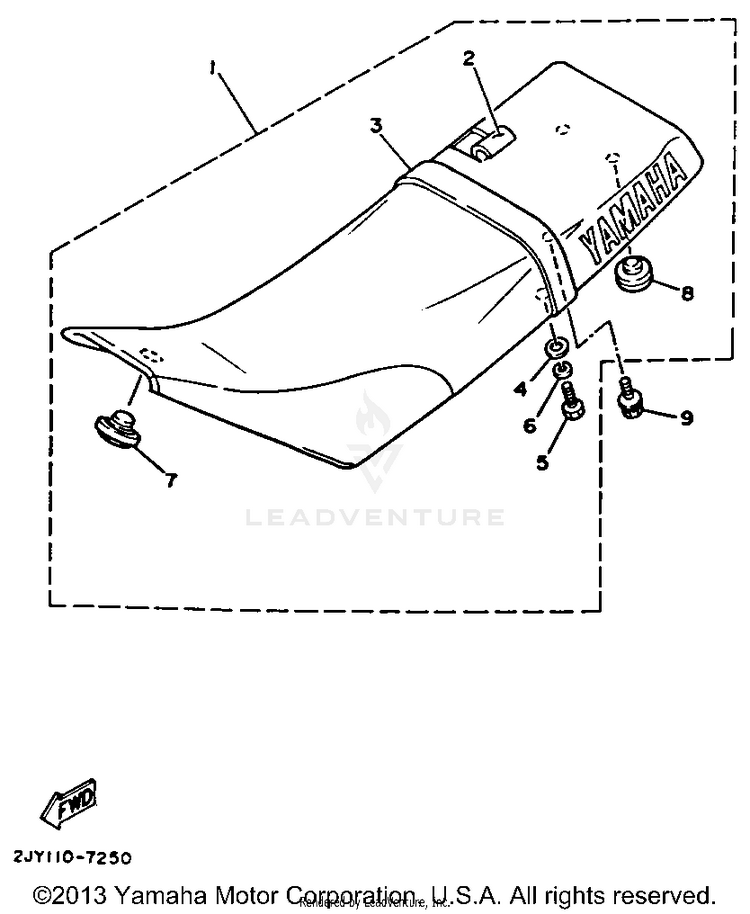

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-3BN-24734-30-00

(replaces part #
2JX-24734-20-00)

BAND,SEAT | UR BLUISH GRN SOLID 1$9.99$8.99Usually ships in 7-10 business days
-2JX-24770-20-00SEMI-DOUBLE SEAT ASSEMBLY | UR BLUISH GRN SOLID 1$216.99$169.25Not Shipping
-2JX-24731-20-00COVER, SEAT | UR BLUISH GRN SOLID 1$151.99$118.55Usually ships in 7-10 business days
12JX-24770-10-00SEMI-DBL SEAT ASSEMBLYASS''Y | UR FARAWAY BLUE$483.99$377.51Usually ships in 7-10 business days
22JX-24731-10-00COVER, DOUBLE SEAT | UR FARAWAY BLU$128.99$100.61Not Shipping
32YY-24734-00-00BAND, SEAT (2JX-24734-10) | UR FARAWAY BLUE$31.99$26.23Usually ships in 7-10 business days
490201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
597017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
718A-24723-00-00DAMPER, SEAT$9.49$8.54Usually ships in 7-10 business days
81L9-24741-00-00PAD, SEAT$10.99$8.5710+ In-Stock
990119-06063-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
