1990 Yamaha TW200 Tailight OEM Parts Diagram

Submodel TRAILWAY - TW200AC - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

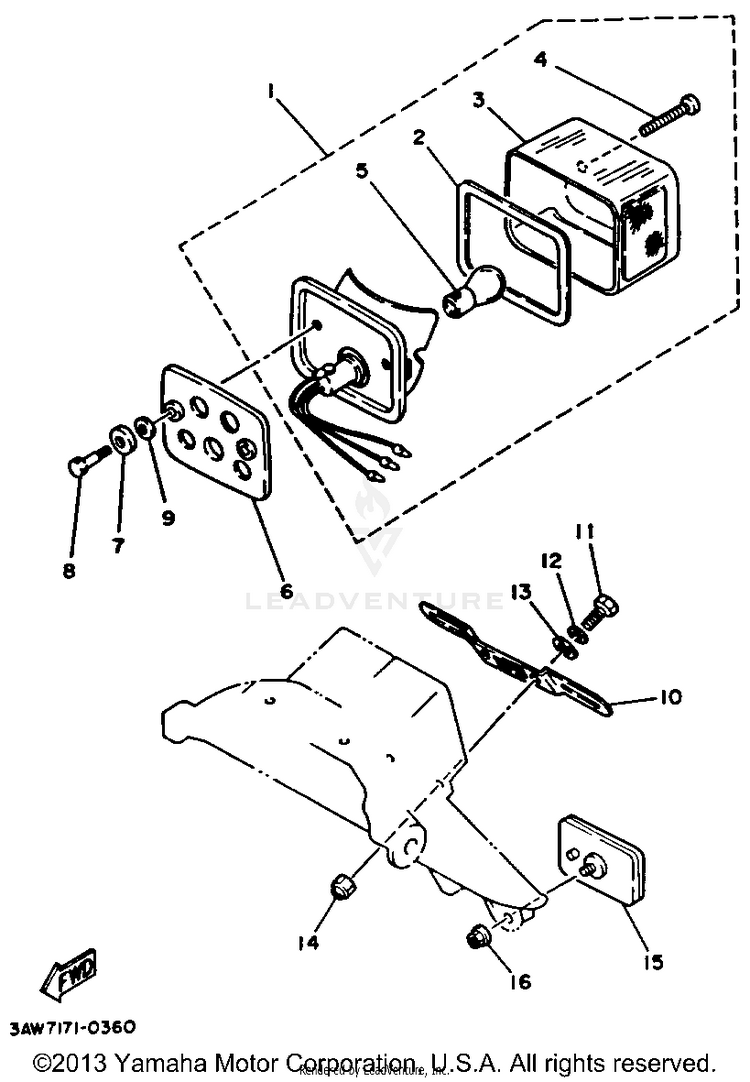

TAILIGHT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11W9-84710-61-00

(replaces part #
1W9-84710-60-00)

TAILLIGHT UNIT ASSY$119.99$93.59Usually ships in 7-10 business days
21M1-84523-60-00GASKET, LENS$14.49$11.303 In-Stock
31M1-84521-60-00LENS, TAILLIGHT$43.99$34.315 In-Stock
45BF-8433E-00-00

(replaces part #
1M1-84524-60-00)

SCREW, ADJUSTING$8.49$6.6210+ In-Stock
5256-84714-61-00BULB (12V-27/8W)$12.99$10.1310+ In-Stock
64L0-84753-00-00DAMPER$16.49$13.52Usually ships in 7-10 business days
790209-08125-00WASHER$12.49$10.24Usually ships in 7-10 business days
890109-06005-00BOLT$8.49$7.64Usually ships in 7-10 business days
990201-083A0-00WASHER, PLATE$10.49$8.60Usually ships in 7-10 business days
1036A-84551-00-00BRACKET, LICENCE$22.99$18.85Usually ships in 7-10 business days
1197017-06016-00

(replaces part #
97016-06016-00)

BOLT$9.49$7.405 In-Stock
1292907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
1390201-06020-00

(replaces part #
90201-065F3-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
1495617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
154KM-85130-00-00

(replaces part #
3G1-85130-01-00)

REAR REFLECTOR ASSY$24.99$20.49Usually ships in 7-10 business days
1695707-05500-00

(replaces part #
95701-05500-00)

NUT, FLANGE$9.49$7.4010+ In-Stock
