1990 Yamaha V-Max Shift Cam Fork OEM Parts Diagram

Submodel V-MAX 1200 - VMX12AC - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

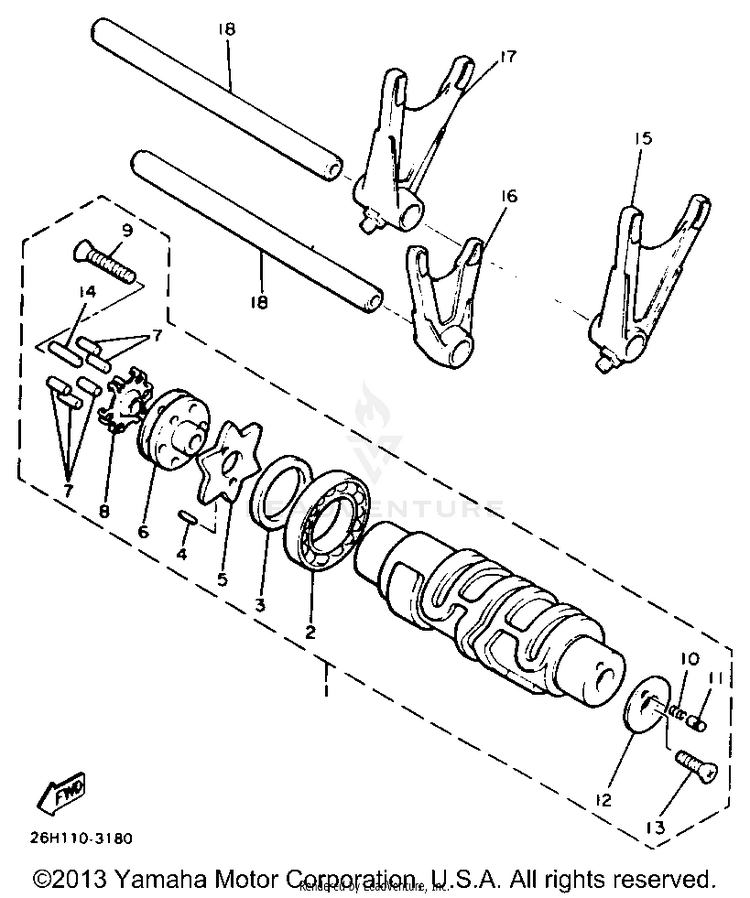

SHIFT CAM FORK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
126H-18540-03-00

(replaces part #
26H-18540-00-00)

SHIFT CAM ASSY$290.99$226.97Usually ships in 7-10 business days
293306-90602-00BEARING$45.99$37.71Usually ships in 7-10 business days
390560-30234-00SPACER$2.90$2.61Usually ships in 7-10 business days
493603-10049-00PIN, DOWEL$4.05$3.64Usually ships in 7-10 business days
54NK-18141-00-00

(replaces part #
26H-18141-01-00)

PLATE, STOPPER$36.99$30.33Usually ships in 7-10 business days
64NK-18185-00-00

(replaces part #
26H-18185-00-00)

SEGMENT$80.99$63.17Usually ships in 7-10 business days
793604-17198-00PIN, DOWEL$1.85$1.597 In-Stock
826H-18561-01-00PLATE, SIDE 1$10.99$9.01Usually ships in 7-10 business days
990151-06013-00SCREW, COUNTERSUNK$10.49$8.182 In-Stock
1090501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
114UN-18542-00-00

(replaces part #
278-18542-00-00)

POINT, NEUTRAL$9.49$7.4010+ In-Stock
12278-18566-00-00PLATE, SIDE 2$6.99$6.29Usually ships in 7-10 business days
1398707-05016-00

(replaces part #
98701-05016-00)

SCREW, FLAT HEAD$7.99$6.233 In-Stock
1493604-21197-00PIN, DOWEL$8.49$7.64Usually ships in 7-10 business days
1526H-18511-01-00FORK, SHIFT 1$71.99$56.15Usually ships in 7-10 business days
1626H-18512-00-00FORK, SHIFT 2$91.99$71.75Usually ships in 7-10 business days
1726H-18513-00-00FORK, SHIFT 3$119.99$93.59Usually ships in 7-10 business days
1826H-18531-00-00BAR, SHIFT FORK GUIDE 1$21.99$18.03Usually ships in 7-10 business days
