1990 Yamaha YZ125 Crankshaft - Piston OEM Parts Diagram

Submodel YZ125A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

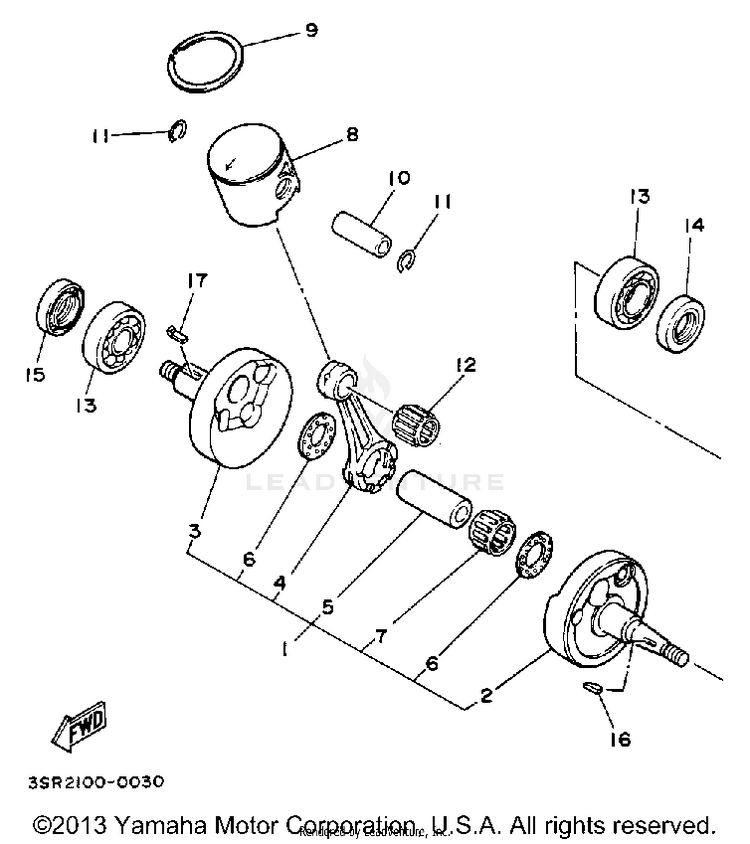

CRANKSHAFT - PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-4DB-11631-00-A0

(replaces part #
3SR-11631-00-96)

PISTON STD$110.99$86.57Not Shipping
13SR-11400-00-00CRANKSHAFT ASSEMBLY$401.99$313.55Usually ships in 7-10 business days
23SR-11412-00-00CRANK 1$377.99$294.83Usually ships in 7-10 business days
33SR-11422-00-00CRANK 2$169.99$132.59Usually ships in 7-10 business days
44PE-11651-02-00

(replaces part #
2HG-11651-00-00)

ROD, CONNECTING$118.99$92.81Usually ships in 7-10 business days
53JD-11681-10-00

(replaces part #
3JD-11681-01-00)

PIN, CRANK 1$74.99$58.492 In-Stock
690209-22257-00WASHER$32.99$27.052 In-Stock
793310-523D2-00

(replaces part #
93310-522B9-00)

BEARING, CYLINDRICAL$84.99$66.29Usually ships in 7-10 business days
84DB-11631-00-A0

(replaces part #
3SR-11631-00-94)

PISTON STD | UR$110.99$86.57Not Shipping
95X4-11611-02-00RING, PISTON$37.99$29.632 In-Stock
10137-11633-10-00

(replaces part #
137-11633-00-00)

PIN, PISTON$30.99$24.174 In-Stock
1193450-17129-00CIRCLIP$4.45$3.8310+ In-Stock
1293310-216L2-00BEARING, CYLINDRICAL$36.99$28.855 In-Stock
1393306-37204-00BEARING | KOYO$51.99$44.5510+ In-Stock
1493102-22363-00OIL SEAL$12.49$9.7410+ In-Stock
1593103-32171-00OIL SEAL (93103-32099-00 )$36.99$28.857 In-Stock
1690280-03017-00KEY, WOODRUFF$8.49$6.8310+ In-Stock
1790282-05038-00KEY, STRAIGHT$5.49$4.28Not Shipping
