1990 Yamaha YZ125 Exhaust OEM Parts Diagram

Submodel YZ125A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

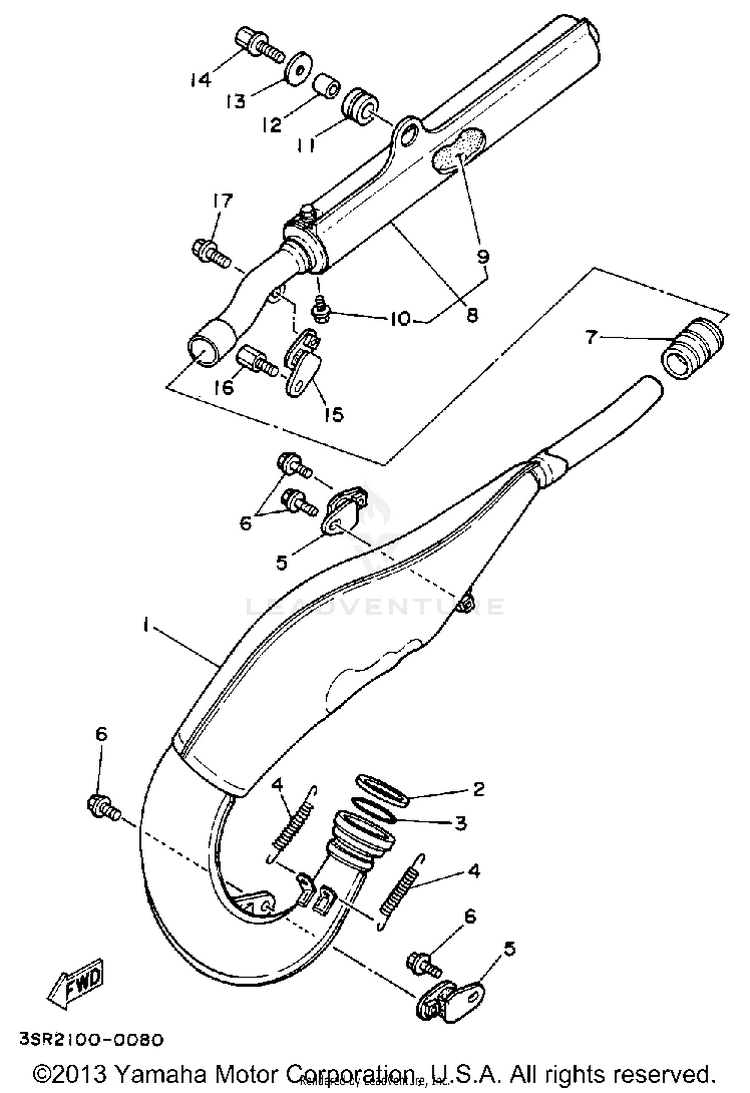

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13SR-14610-00-00EXHAUST PIPE ASSEMBLY L$371.99$290.15Not Shipping
23R3-14613-00-00GASKET, EXHAUST PIPE$11.99$9.357 In-Stock
393210-45742-00O-RING$13.99$10.9110+ In-Stock
490507-20030-00SPRING, TENSION$16.49$12.8610+ In-Stock
5565-14771-01-00

(replaces part #
565-14771-00-00)

STAY, MUFFLER 1$19.99$15.5910+ In-Stock
695024-06012-00

(replaces part #
95023-06012-00)

BOLT, FLANGE (SMALL HEAD)$4.75$4.0810+ In-Stock
73M7-14615-00-00JOINT, EXHAUST L$56.99$44.45Usually ships in 7-10 business days
83JD-14753-01-00SILENCER, EXHAUST$270.99$211.37Usually ships in 7-10 business days
93JD-1469A-01-00FIBER$40.99$33.61Not Shipping
1095024-06008-00

(replaces part #
95023-06008-00)

BOLT, FLANGE$10.49$8.183 In-Stock
1139X-14747-00-00DAMPER, MUFFLER$15.49$12.08Not Shipping
1290387-081A3-00COLLAR$5.99$4.67Not Shipping
1390201-08612-00WASHER, PLATE$9.49$7.403 In-Stock
1490109-08512-00BOLT$12.49$9.743 In-Stock
15565-14771-01-00

(replaces part #
565-14771-00-00)

STAY, MUFFLER 1$19.99$15.5910+ In-Stock
1690109-06551-00BOLT$23.99$18.7110+ In-Stock
1795024-06012-00

(replaces part #
95023-06012-00)

BOLT, FLANGE (SMALL HEAD)$4.75$4.0810+ In-Stock
