1991 Yamaha RT180 Electrical 1 OEM Parts Diagram

Submodel RT180B - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

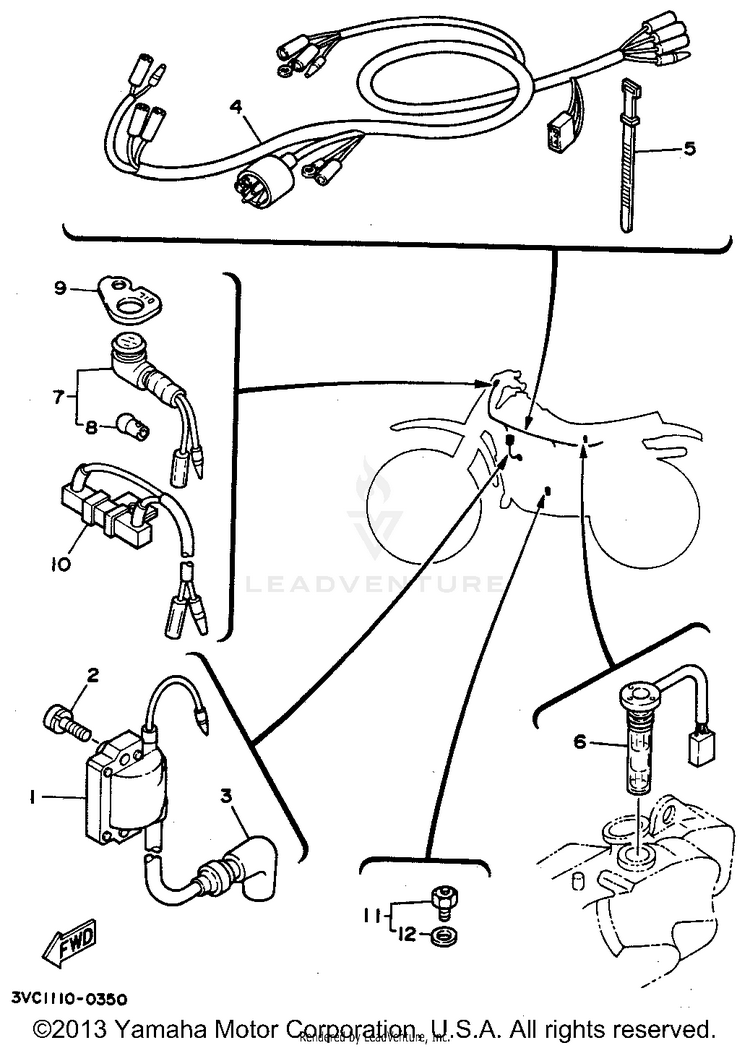

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13T2-82310-M0-00IGNITION COIL ASSEMBLY$149.99$116.99Usually ships in 7-10 business days
297602-06120-09SCREW, PAN HEAD WITH WASHER$0.45$0.40Usually ships in 7-10 business days
38DG-82370-00-00

(replaces part #
5L9-H2370-00-00)

PLUG CAP ASSY$53.99$42.1110+ In-Stock
43VC-H2590-02-00

(replaces part #
3VC-H2590-01-00)

WIRE HARNESS ASSEMBLY$121.99$95.15Usually ships in 7-10 business days
55L9-H3936-00-00BAND, SWITCH CORD$0.85$0.76Usually ships in 7-10 business days
65GP-85720-00-00

(replaces part #
23K-H5720-00-00)

OIL LEVEL GAUGE ASSY$58.99$46.01Usually ships in 7-10 business days
752G-83530-10-00

(replaces part #
52G-83530-00-00)

PILOT LIGHT ASSY$36.99$28.855 In-Stock
8123-83516-21-XX

(replaces part #
123-83516-21-00)

BULB (12V-3.4W)$4.75$4.08Not Shipping
93VC-H3574-00-00BRACKET, INDICATOR LIGHT 1$1.65$1.48Usually ships in 7-10 business days
103VC-85370-00-00RESISTOR ASSEMBLY$44.99$36.89Usually ships in 7-10 business days
115HH-H2540-02-00

(replaces part #
502-H2540-00-00)

NEUTRAL SWITCH ASSY$19.49$15.20
1290430-09802-09GASKET$1.80$1.62Usually ships in 7-10 business days
