1991 Yamaha RT180 Seat OEM Parts Diagram

Submodel RT180B - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

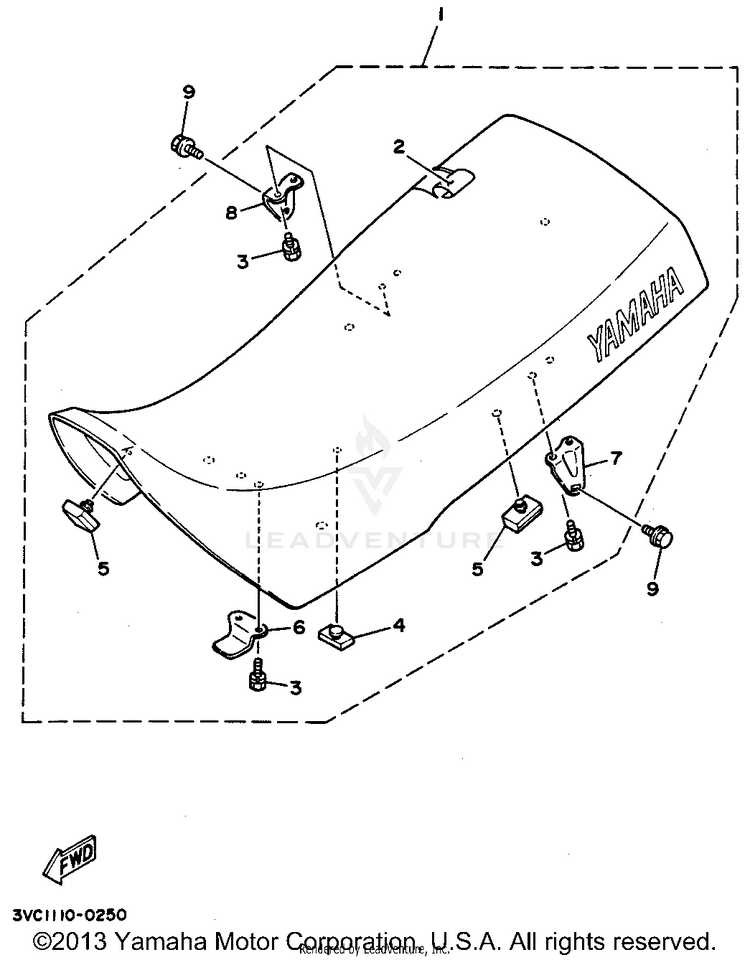

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-3VC-F4770-40-00

(replaces part #
3VC-F4770-10-00)

SEMI-DOUBLE SEAT ASSEMBLY | UR BLUE$268.99$209.81Usually ships in 7-10 business days
-3VC-F4731-10-00COVER, SEAT | UR BLUE$101.99$79.55Usually ships in 7-10 business days
12TW-F4770-40-00

(replaces part #
3VC-F4770-00-00)

SEMI-DBL SEAT ASY | UR RED$1,036.99$867.71Usually ships in 7-10 business days
23VC-F4731-00-00COVER, SEAT | UR RED$57.99$45.23Usually ships in 7-10 business days
397017-06012-00

(replaces part #
97502-06112-09)

BOLT$4.05$3.4810+ In-Stock
4509-24724-00-00

(replaces part #
5L9-F4724-00-00)

DAMPER, SEAT$11.99$9.353 In-Stock
5502-29472-00-00PAD, SEAT$1.85$1.66Not Shipping
65L9-F4748-00-00BRACKET, SEAT$16.99$13.93Usually ships in 7-10 business days
75L9-F4738-10-00

(replaces part #
5L9-F4738-00-00)

BRACKET, SEAT$5.99$5.39Usually ships in 7-10 business days
85L9-F4728-10-00

(replaces part #
5L9-F4728-00-00)

BRACKET, SEAT$5.99$5.39Usually ships in 7-10 business days
997506-08512-00

(replaces part #
97506-08212-09)

BOLT, WITH WASHER$0.70$0.63Usually ships in 7-10 business days
