1991 Yamaha YZ125 Crankshaft-Piston OEM Parts Diagram

Submodel YZ125B - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

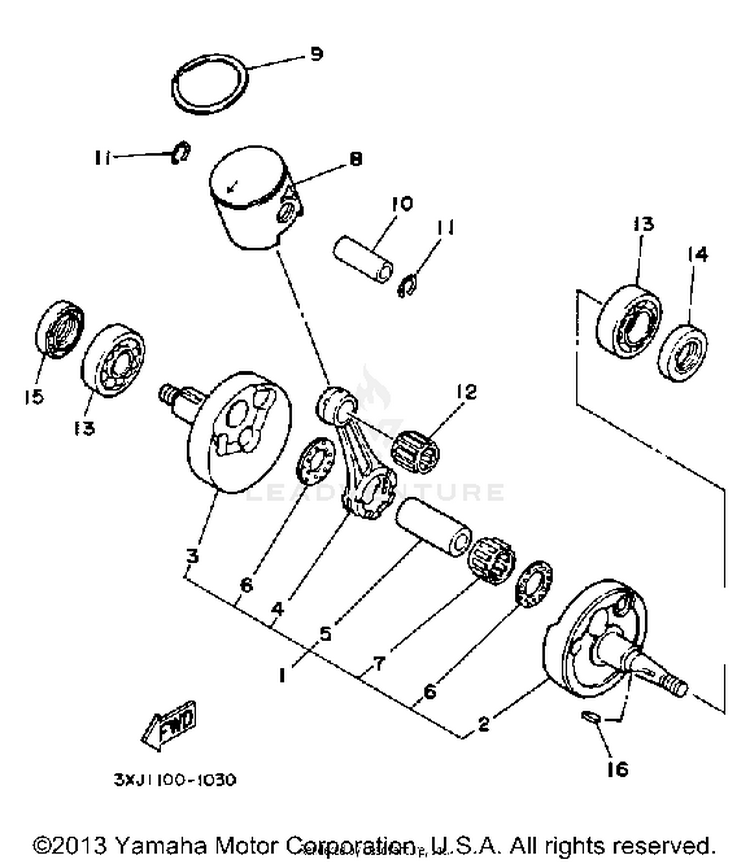

CRANKSHAFT-PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-3XJ-11631-00-B0PISTON STD | UR ORANGE$89.99$70.19Usually ships in 7-10 business days
-3XJ-11631-00-D0PISTON STD | UR PURPLE$70.99$55.37Usually ships in 7-10 business days
-3XJ-11631-00-C0PISTON STD$82.99$64.73Usually ships in 7-10 business days
13XJ-11400-01-00

(replaces part #
3XJ-11400-00-00)

CRANKSHAFT ASSEMBLY$731.99$570.95Usually ships in 7-10 business days
23SR-11412-00-00CRANK 1$377.99$294.83Usually ships in 7-10 business days
33XJ-11422-00-00CRANK 2$243.99$190.31Usually ships in 7-10 business days
44PE-11651-02-00

(replaces part #
2HG-11651-00-00)

ROD, CONNECTING$118.99$92.81Usually ships in 7-10 business days
53JD-11681-10-00

(replaces part #
3JD-11681-01-00)

PIN, CRANK 1$74.99$58.492 In-Stock
690209-22257-00WASHER$32.99$27.052 In-Stock
793310-52238-00

(replaces part #
93310-522M4-00)

BEARING$80.99$63.178 In-Stock
83XJ-11631-00-A0PISTON STD | UR RED$104.99$81.89Usually ships in 7-10 business days
95X4-11611-02-00RING, PISTON$37.99$29.632 In-Stock
10137-11633-10-00

(replaces part #
137-11633-00-00)

PIN, PISTON$30.99$24.174 In-Stock
1193450-17129-00CIRCLIP$4.45$3.8310+ In-Stock
1293310-216L2-00BEARING, CYLINDRICAL$36.99$28.855 In-Stock
1393306-37204-00BEARING | KOYO$51.99$44.5510+ In-Stock
1493102-22363-00OIL SEAL$12.49$9.7410+ In-Stock
1593103-32171-00OIL SEAL (93103-32099-00 )$36.99$28.857 In-Stock
1690280-03017-00KEY, WOODRUFF$8.49$6.8310+ In-Stock
