1991 Yamaha YZ125 Shift Cam Fork OEM Parts Diagram

Submodel YZ125B - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

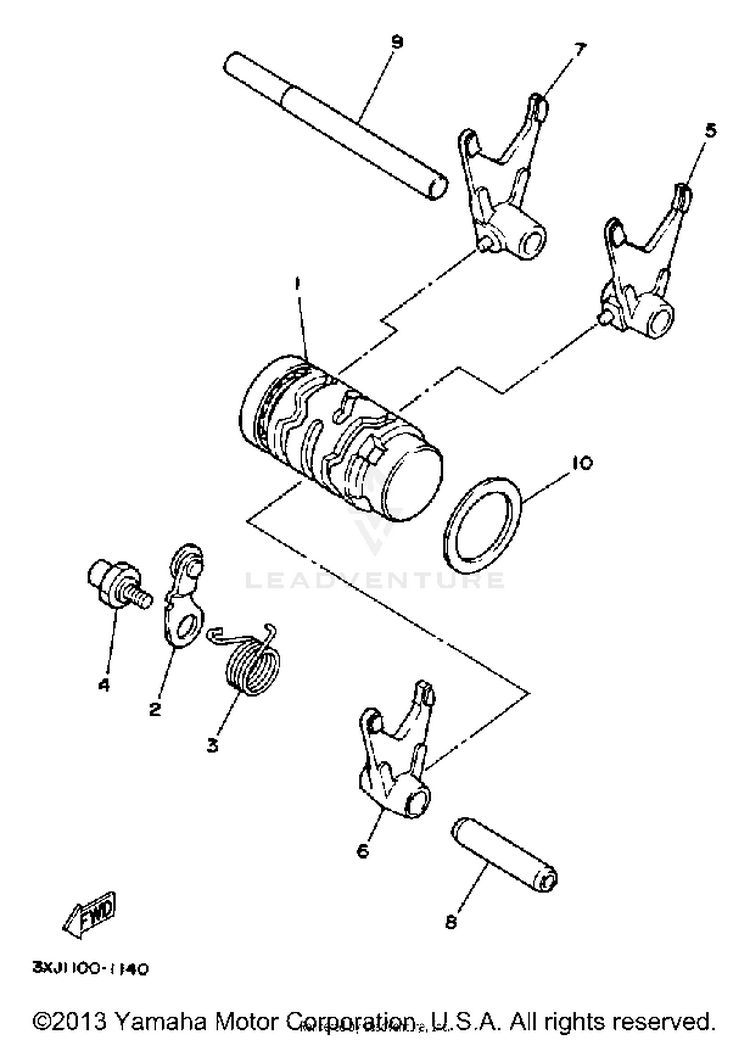

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13XJ-18540-00-00SHIFT CAM ASSEMBLY$131.99$102.95Usually ships in 7-10 business days
23XJ-18140-00-00STOPPER LEVER ASSEMBLY$14.49$11.88Usually ships in 7-10 business days
390508-240A7-00SPRING, TORSION$4.45$4.00Usually ships in 7-10 business days
43XK-18177-00-00BOLT, STOPPER$20.99$17.21Not Shipping
53JD-18511-01-00FORK, SHIFT 1$68.99$53.81Not Shipping
62VN-18512-01-00FORK, SHIFT 2$64.99$50.69Not Shipping
71LX-18513-01-00FORK, SHIFT 3$73.99$57.71Usually ships in 7-10 business days
84EX-18531-00-00

(replaces part #
1LX-18531-00-00)

BAR, SHIFT FORK GUIDE 1$14.99$12.29Not Shipping
94EX-18535-00-00

(replaces part #
1LX-18535-00-00)

BAR, SHIFT FORK GUIDE 2$25.99$21.31Not Shipping
1090201-34683-00WASHER, PLATE (90201-33299-00)$11.49$8.9610+ In-Stock
