AIR FILTER

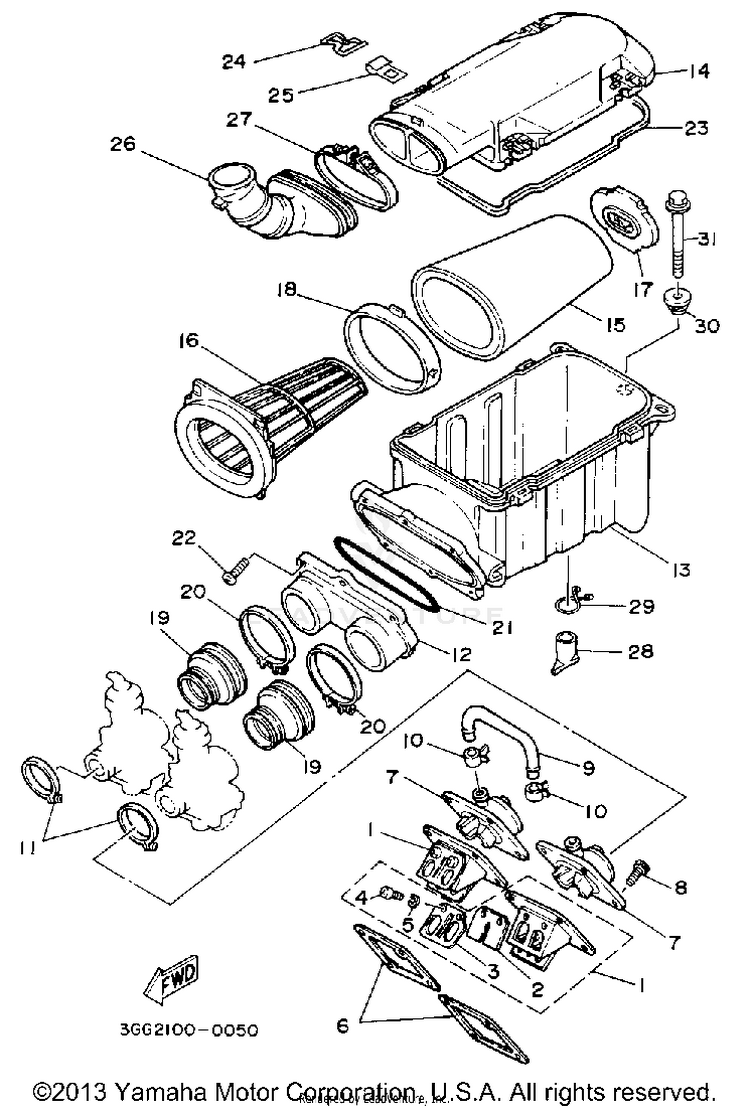

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GU-13610-01-00REED VALVE ASSY$159.99$124.79Usually ships in 7-10 business days
22GU-13613-00-00REED, VALVE$23.99$18.7110+ In-Stock
32GU-13616-00-00STOPPER, REED VALVE$9.49$7.406 In-Stock
498580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
592990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
63GG-13621-00-00

(replaces part #
55K-13621-01-00)

GASKET, VALVE SEAT$9.49$8.2510+ In-Stock
731K-13565-01-00JOINT, CARBURETOR$72.99$56.9310+ In-Stock
891317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
929L-14465-00-00PIPE$31.99$24.956 In-Stock
1090467-20085-00CLIP$10.49$8.187 In-Stock
1190450-44046-00HOSE CLAMP ASSY$18.49$14.4210+ In-Stock
122GU-14411-00-00CASE, AIR CLEANER 1$74.99$58.492 In-Stock
132GU-14421-01-00

(replaces part #
2GU-14421-00-00)

CASE, AIR CLEANER 2$170.99$133.374 In-Stock
142GU-14412-00-00CAP, CLEANER CASE 1$122.99$95.936 In-Stock
152GU-14451-01-00

(replaces part #
2GU-14451-00-00)

ELEMENT,AIR CLEANER$17.49$13.645 In-Stock
165FK-14458-00-00

(replaces part #
2GU-14458-00-00)

GUIDE$91.99$71.752 In-Stock
172GU-14468-00-00PLATE, ELEMENT FITTING$18.99$14.812 In-Stock
182GU-14459-00-00HOLDER, GUIDE$35.99$28.07Not Shipping
1929L-14453-01-00JOINT, AIR CLEANER 1$24.99$19.4910+ In-Stock
2090460-68230-00CLAMP, HOSE$18.49$14.4210+ In-Stock
211VJ-14462-00-00

(replaces part #
5T0-14457-00-00)

SEAL$19.99$15.5910+ In-Stock
2297780-50125-00SCREW, TAPPING$3.10$2.6710+ In-Stock
231VJ-14462-00-00SEAL$19.99$15.5910+ In-Stock
2490465-18312-00CLAMP$14.49$11.3010+ In-Stock
2590468-05184-00CLIP$10.49$8.1810+ In-Stock
262GU-14437-00-00DUCT$38.99$30.412 In-Stock
2790460-99291-00CLAMP, HOSE$32.99$25.732 In-Stock
2859V-14457-00-00SEAL$7.49$5.8410+ In-Stock
2990467-22080-00CLIP$9.49$7.4010+ In-Stock
3090480-18171-00GROMMET$9.49$7.409 In-Stock
3190119-06096-00BOLT, WITH WASHER$4.30$3.7010+ In-Stock
