1992 Yamaha BANSHEE 350 Front Wheel OEM Parts Diagram

Submodel BANSHEE - YFZ350D - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

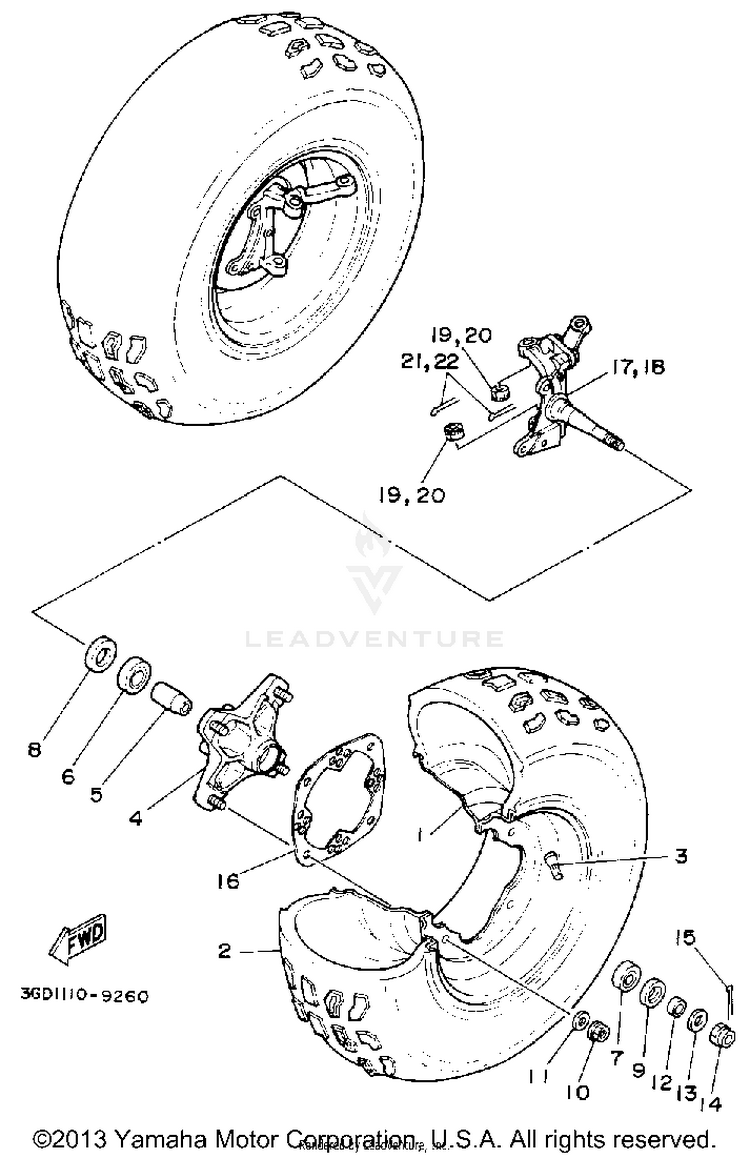

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12XK-25180-10-UJ

(replaces part #
2XK-25180-01-UJ)

FRONT WHEEL COMP. | RADICAL WHITE$242.99$189.53Not Shipping
294107-100X3-00TIRE (AT21X7-10**KT851A T/L N) | DUNLOP$109.99$92.45Usually ships in 7-10 business days
393900-00030-00VALVE, RIM (TR412)$18.49$14.425 In-Stock
43GD-25111-01-00HUB, FRONT$210.99$171.03Not Shipping
51UY-25117-00-00SPACER, BEARING$31.99$24.9510+ In-Stock
693306-00438-00

(replaces part #
93306-00406-00)

BEARING$41.99$32.7510+ In-Stock
793306-20204-00BEARING (B6202Z)$24.99$19.4910+ In-Stock
893105-26026-00OIL SEAL$13.49$10.5210+ In-Stock
993102-22216-00OIL SEAL$12.49$9.7410+ In-Stock
1095704-10500-00

(replaces part #
95701-10500-00)

NUT, WITH WASHER-$2.285 In-Stock
1192990-10200-00WASHER, PLAIN$3.80$3.2710+ In-Stock
1290387-150R1-00COLLAR$8.49$6.6210+ In-Stock
1390201-14220-00

(replaces part #
90201-14586-00)

WASHER, PLATE$9.49$7.4010+ In-Stock
1490171-14056-00

(replaces part #
90171-14020-00)

NUT, CASTLE$14.49$11.3010+ In-Stock
1591490-30030-00

(replaces part #
91401-30030-00)

PIN, COTTER$8.49$6.6210+ In-Stock
163GD-25127-10-00COVER, PLATE$33.99$26.51Not Shipping
173GD-23501-10-00

(replaces part #
3GD-23501-00-00)

STEERING KNUCKLE ASSY (LEFT)$343.99$268.314 In-Stock
183GD-23502-10-00

(replaces part #
3GD-23502-00-00)

STEERING KNUCKLE ASSY (RIGHT)$699.99$545.992 In-Stock
1990171-10001-00

(replaces part #
90171-10046-00)

NUT, CASTLE$3.55$3.0510+ In-Stock
2090171-10001-00

(replaces part #
90171-10046-00)

NUT, CASTLE$3.55$3.0510+ In-Stock
2191490-20025-00

(replaces part #
91490-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
2291490-20025-00

(replaces part #
91490-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
