1992 Yamaha BANSHEE 350 Fuel Tank OEM Parts Diagram

Submodel BANSHEE - YFZ350D_MN - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FUEL TANK

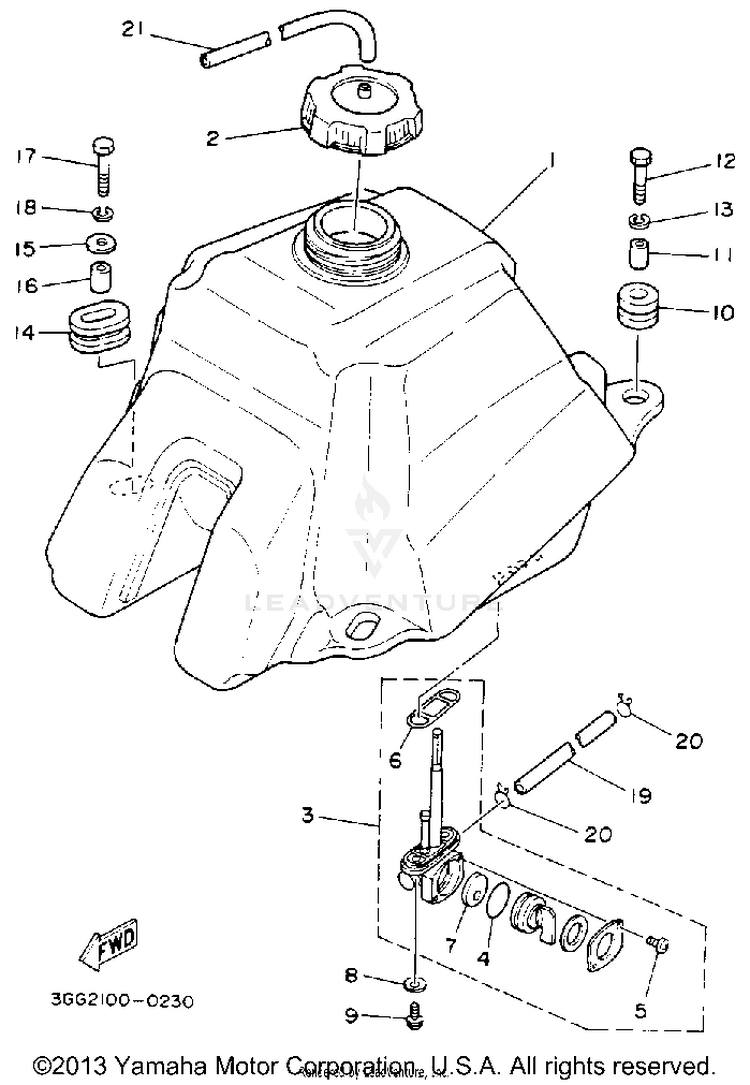

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GU-24110-00-00FUEL TANK COMP.$244.99$191.09Not Shipping
25MV-24610-00-00

(replaces part #
1UY-24610-00-00)

CAP ASSY$63.99$49.916 In-Stock
32GU-24500-02-00

(replaces part #
2GU-24500-01-00)

FUEL COCK ASSY 1$64.99$50.6910+ In-Stock
43AJ-24534-01-00

(replaces part #
3AJ-24534-00-00)

SEAL, COCK$11.99$9.3510+ In-Stock
598580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
64X8-24512-00-00O-RING$9.49$7.4010+ In-Stock
73AC-24523-00-00

(replaces part #
3AJ-24523-00-00)

VALVE PACKING$14.49$11.3010+ In-Stock
890202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
990149-06011-00SCREW$2.05$1.7610+ In-Stock
1090480-18290-00GROMMET$9.49$8.0510+ In-Stock
1190387-066J1-00COLLAR$9.49$7.4010+ In-Stock
1297017-06030-00

(replaces part #
97021-06030-00)

BOLT,HEXAGON$3.90$3.3510+ In-Stock
1392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1490480-01400-00GROMMET$14.49$11.3010+ In-Stock
1590201-06090-00

(replaces part #
90201-060L5-00)

WASHER, PLATE$6.49$5.0610+ In-Stock
1690387-07598-00COLLAR$6.49$5.0610+ In-Stock
1797017-06030-00

(replaces part #
97021-06030-00)

BOLT,HEXAGON$3.90$3.3510+ In-Stock
1892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1990445-13693-00HOSE (L166)$14.49$11.3010+ In-Stock
2090467-11106-00

(replaces part #
90467-11102-00)

CLIP$4.05$3.4810+ In-Stock
2190445-090F6-00

(replaces part #
90445-09111-00)

HOSE (L675)$34.99$27.296 In-Stock
