1992 Yamaha BANSHEE 350 Headlight OEM Parts Diagram

Submodel BANSHEE - YFZ350D_MN - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

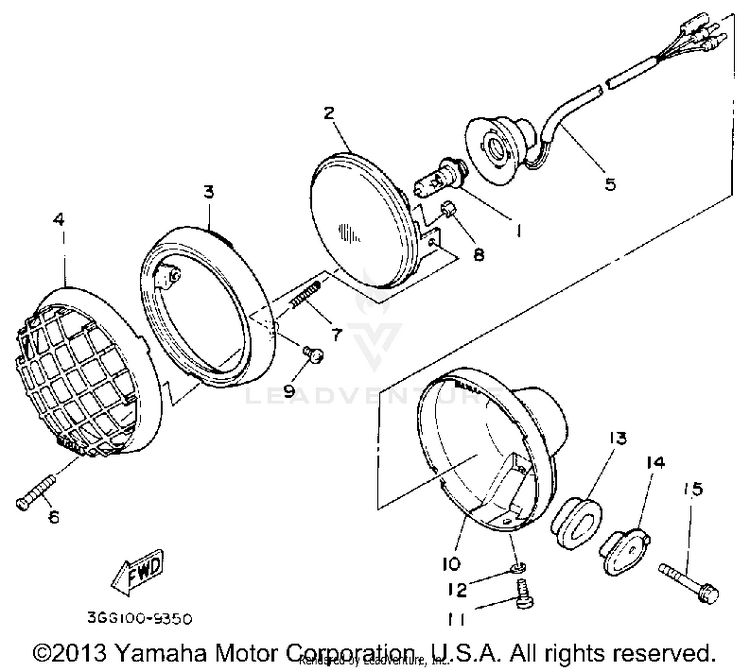

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-4SH-84320-00-00

(replaces part #
2GU-84320-00-00)

LENS ASSY$77.99$60.83Not Shipping
12GN-84314-00-XX

(replaces part #
2GN-84314-00-00)

BULB (12V30/30W) (2GN-84314-00-$16.99$13.30Not Shipping
32GU-84315-00-00RIM, HEAD LIGHT$59.99$46.79Not Shipping
42GU-84159-00-00GUARD, HEAD LIGHT$43.99$34.316 In-Stock
52GU-84340-10-00SOCKET CORD ASSEMBLY 1$27.99$22.95Not Shipping
698507-03540-00

(replaces part #
2GU-84331-00-00)

SCREW, PAN HEAD$2.35$2.0210+ In-Stock
72GU-84332-00-00SPRING, SCREW$8.49$6.628 In-Stock
82GU-84334-00-00NUT, ADJUSTING$8.49$6.627 In-Stock
997885-05010-00

(replaces part #
98580-05010-00)

SCREW, PAN HEAD$3.15$2.715 In-Stock
102GU-84330-40-00BODY ASSEMBLY | PURPLISH WHITE SOLID 1$49.99$40.99Not Shipping
1197885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
1292990-05100-00WASHER, SPRING-$0.8310+ In-Stock
132GU-84345-00-00DAMPER, HEADLIGHT$8.49$6.6210+ In-Stock
142GU-84338-00-00COLLAR, BODY FITTING$24.99$19.4910+ In-Stock
1595817-08055-00

(replaces part #
95816-08055-00)

BOLT, FLANGE$4.21$3.6210+ In-Stock
