1992 Yamaha FZR600 Front Master Cylinder OEM Parts Diagram

Submodel FZR600RDC - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

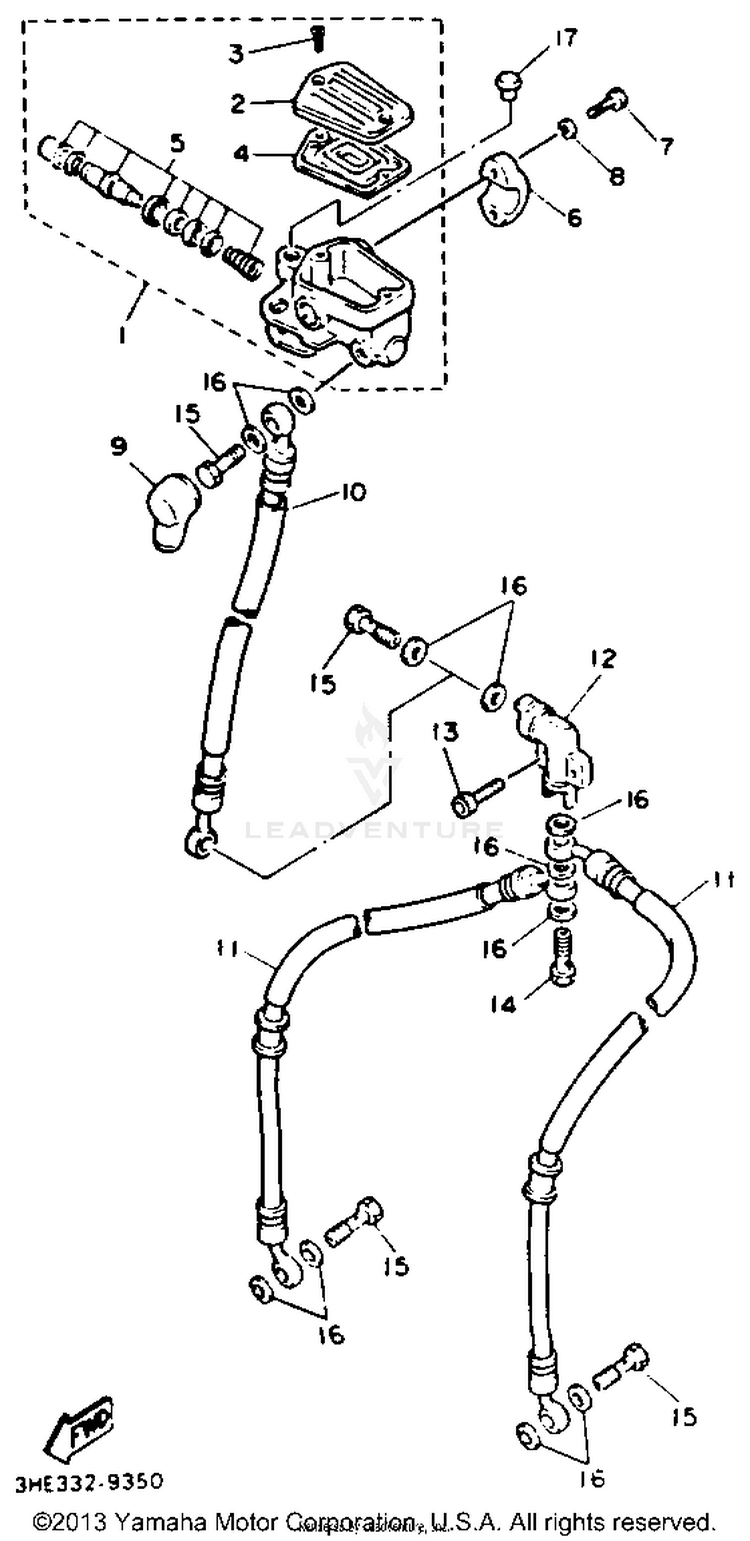

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13HE-2583T-02-00

(replaces part #
3HE-2583T-00-00)

MASTER CYLINDER ASSY$219.99$171.59Usually ships in 7-10 business days
23HE-25852-01-00

(replaces part #
3HE-25852-00-00)

CAP, RESERVOIR$32.99$27.05Usually ships in 7-10 business days
398707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
436Y-25854-00-00DIAPHRAGM, RESERVOIR$38.99$31.97Usually ships in 7-10 business days
536Y-W0041-00-00CYLINDER KIT, MASTER$95.99$74.87Usually ships in 7-10 business days
636Y-25867-00-00BRACKET, MASTER CYLINDER$26.99$22.13Usually ships in 7-10 business days
791317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
892907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
94L0-25862-02-00

(replaces part #
4L0-25862-00-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
1099999-02528-00

(replaces part #
3HE-25872-01-00)

HOSE, BRAKE 1$87.99$68.63Not Shipping
1199999-02529-00

(replaces part #
3HE-25873-11-00)

HOSE, BRAKE 2$96.99$75.65Not Shipping
1211U-25885-00-00JOINT$49.99$40.99Not Shipping
1391317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
1490401-10038-00

(replaces part #
90401-10044-00)

BOLT, UNION$13.49$11.062 In-Stock
1590401-10159-00

(replaces part #
90401-10034-00)

BOLT, UNION$12.49$9.7410+ In-Stock
1690201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
1790338-09012-00PLUG$10.49$8.186 In-Stock
