1992 Yamaha FZR600 Handle Switch Lever OEM Parts Diagram

Submodel FZR600RDC - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

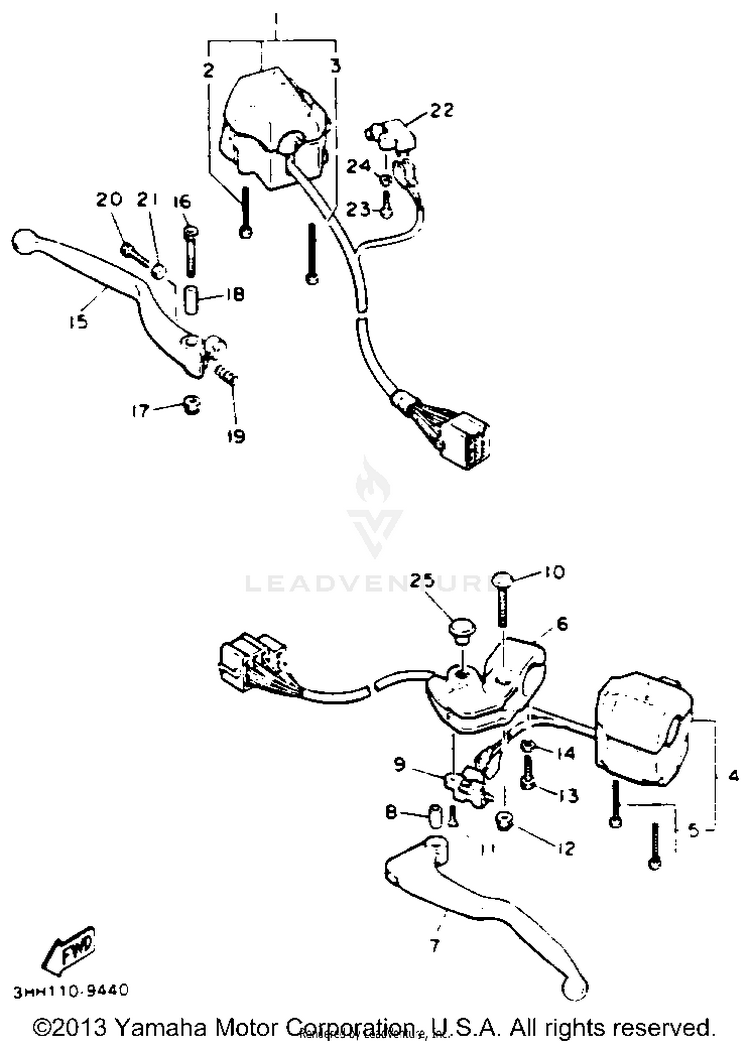

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12LJ-83975-00-00

(replaces part #
3HH-83975-00-00)

SWITCH, HANDLE 2$222.99$173.93Usually ships in 7-10 business days
298507-05040-00

(replaces part #
98506-05040-00)

SCREW, PAN HEAD$9.49$8.543 In-Stock
398507-05045-00

(replaces part #
98506-05045-00)

SCREW, PAN HEAD$10.49$8.183 In-Stock
43HH-83973-00-00SWITCH, HANDLE 3$221.35$172.65Usually ships in 7-10 business days
598507-05035-00

(replaces part #
98506-05035-00)

SCREW, PAN HEAD$9.49$7.407 In-Stock
629L-82911-01-00HOLDER, LEVER 1$65.99$51.47Not Shipping
73HE-83912-00-00LEVER 1$30.99$25.41Usually ships in 7-10 business days
831A-83913-00-00COLLAR, LEVER 1$24.99$20.49Usually ships in 7-10 business days
931A-82917-00-00SWITCH$27.99$22.95Usually ships in 7-10 business days
1031A-83945-00-00BOLT, LEVER$5.99$5.391 In-Stock
1198707-03008-00

(replaces part #
98702-03008-00)

SCREW, FLAT HEAD$8.49$7.64Usually ships in 7-10 business days
1295617-06100-00

(replaces part #
95616-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1397017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
1492907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
151FK-83922-00-00LEVER 2$37.99$31.15Usually ships in 7-10 business days
1690110-06074-00BOLT, HEXAGON SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
1795617-06100-00

(replaces part #
95616-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1836Y-83913-01-00COLLAR, LEVER 1$10.99$8.577 In-Stock
1990501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
2090149-06131-00SCREW$9.49$7.4010+ In-Stock
2190170-06010-00

(replaces part #
90170-06355-00)

NUT$9.49$7.404 In-Stock
22J45-82503-01-00FRONT STOP SWITCH ASSY$40.99$31.971 In-Stock
2398507-04018-00

(replaces part #
98506-04018-00)

SCREW, PAN HEAD$2.35$2.029 In-Stock
2492907-04600-00

(replaces part #
92906-04600-00)

WASHER$1.85$1.596 In-Stock
2590338-09012-00PLUG | AP$10.49$8.186 In-Stock
