1992 Yamaha WARRIOR 350 Headlight OEM Parts Diagram

Submodel WARRIOR - YFM350XD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

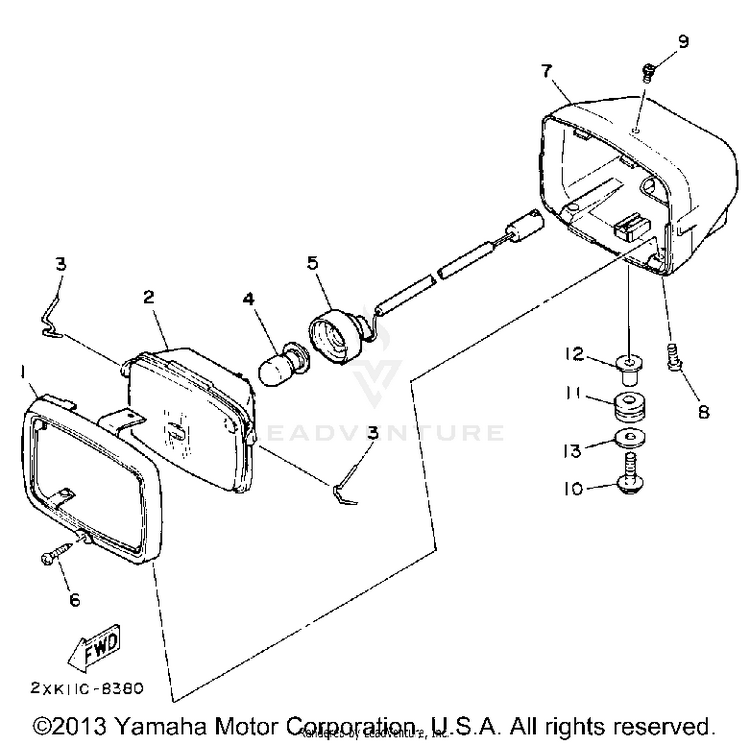

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11UY-84315-00-00RIM, HEADLIGHT$60.99$47.57Usually ships in 7-10 business days
259V-84320-01-00

(replaces part #
59V-84320-00-00)

LENS ASSY$105.99$82.67Usually ships in 7-10 business days
31UY-84124-00-00SPRING, SET$8.49$7.646 In-Stock
41YT-84314-00-00

(replaces part #
102-84314-00-00)

BULB, HEADLIGHT (12V-25/25W)$12.99$10.1310+ In-Stock
559V-84312-02-00

(replaces part #
59V-84312-00-00)

SOCKET$32.99$25.73Not Shipping
697780-40525-00SCREW, TAPPING$10.49$8.60Usually ships in 7-10 business days
73GD-84330-00-00BODY ASSEMBLY | LOW GLOSS GRAY$40.99$33.61Usually ships in 7-10 business days
890157-05M19-00

(replaces part #
98586-05016-00)

SCREW, PAN HEAD$3.75$3.225 In-Stock
998507-04010-00

(replaces part #
98506-04010-00)

SCREW, PAN HEAD$3.65$3.1410+ In-Stock
1095817-06025-00

(replaces part #
95811-06025-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
1190480-15363-00GROMMET$9.49$7.403 In-Stock
1290387-075U2-00COLLAR$4.25$3.66Not Shipping
1390201-06747-00

(replaces part #
90201-06407-00)

WASHER, PLATE$9.49$7.408 In-Stock
