1992 Yamaha WARRIOR 350 Seat OEM Parts Diagram

Submodel WARRIOR - YFM350XD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

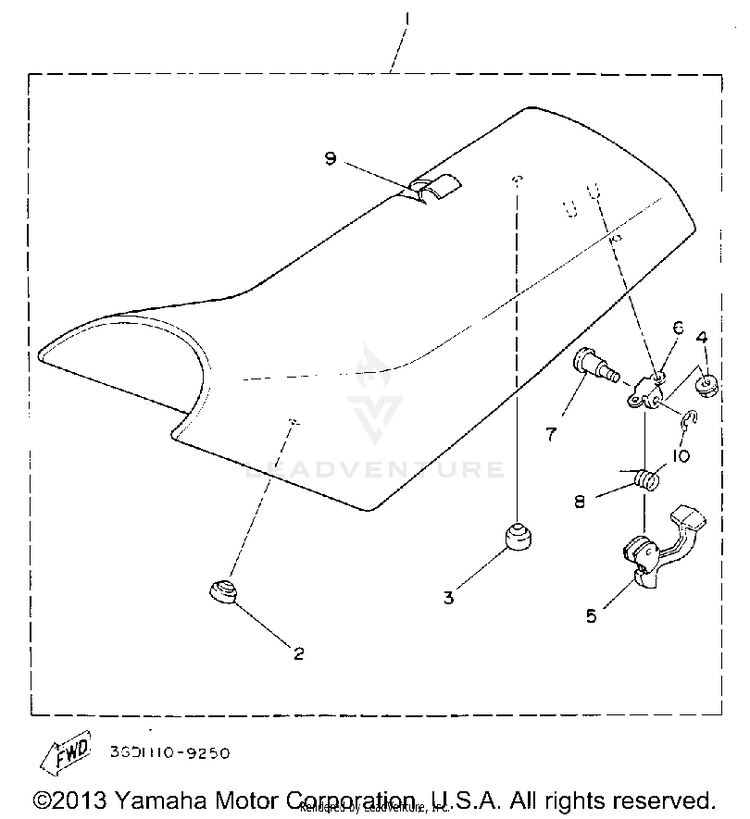

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-3GD-24710-20-00SINGLE SEAT ASSEMBLY | UR GREENISH BLUE SOLID 1$253.99$198.11Usually ships in 7-10 business days
-1UY-24731-10-00COVER, SEAT | UR BLUE$203.99$159.11Not Shipping
11UY-24710-10-00SINGLE SEAT ASSEMBLY (1UY-24710 | UR BLUE$288.99$225.41Not Shipping
222W-24741-00-00PAD, SEAT$9.49$7.4010+ In-Stock
3371-27114-00-00STOPPER, MAIN STAND$8.49$6.6210+ In-Stock
495780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
53GD-24776-00-00LEVER, SEAT$46.99$36.651 In-Stock
64K0-24775-00-00BRACKET, SEAT LEVER$7.49$6.742 In-Stock
74K0-24774-01-00PIN$17.99$14.75Usually ships in 7-10 business days
890508-20454-00SPRING, TORSION$8.49$7.642 In-Stock
93GD-24731-20-00COVER, DOUBLE SEAT | UR GREENISH BLUE SOLID 1$94.57$73.76Usually ships in 7-10 business days
1099080-04600-00

(replaces part #
93430-04002-00)

CLIP$1.99$1.716 In-Stock
