1992 Yamaha YZ125 Air Filter OEM Parts Diagram

Submodel YZ125D1 - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

AIR FILTER

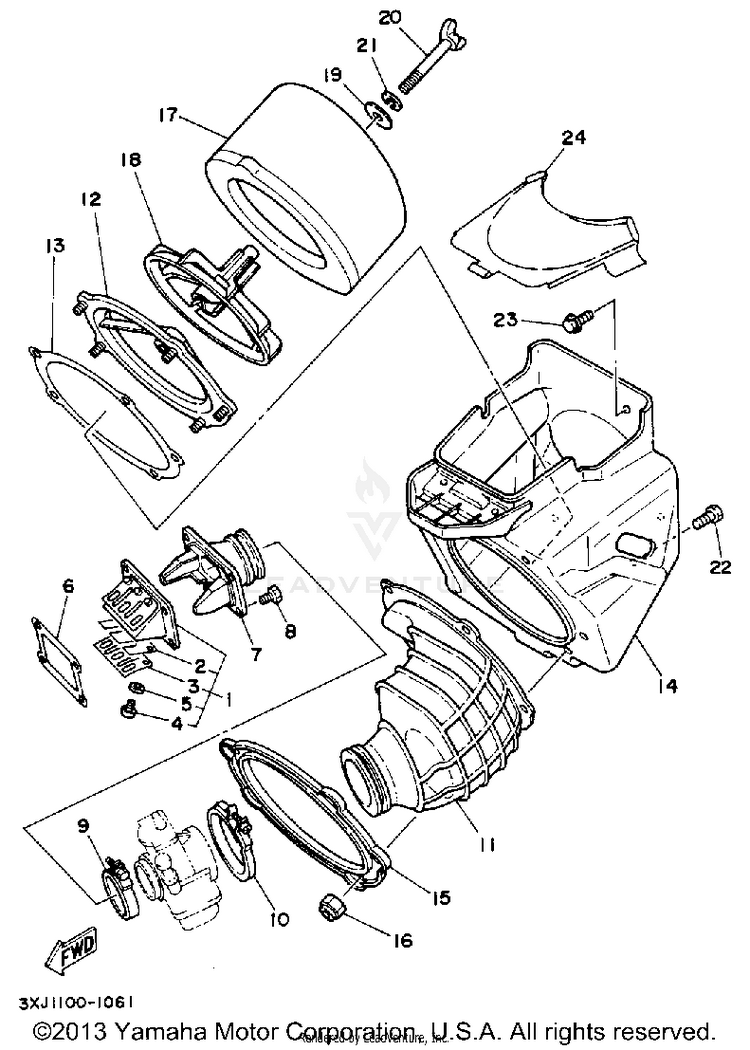

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12VN-13610-00-00REED VALVE ASSEMBLY$172.99$134.93Usually ships in 7-10 business days
21RX-13613-00-00REED, VALVE$40.99$33.61Not Shipping
32VN-13616-00-00STOPPER, REED VALVE$32.99$27.05Usually ships in 7-10 business days
498580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
592990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
62K7-13621-10-00GASKET, VALVE SEAT$15.49$12.082 In-Stock
73SR-13565-00-00JOINT, CARBURETOR$67.99$53.03Not Shipping
895024-06020-00

(replaces part #
95023-06020-00)

BOLT, FLANGE (SMALL HEAD)$6.49$5.069 In-Stock
990460-51109-00CLAMP, HOSE$12.99$10.13Not Shipping
1090460-68230-00CLAMP, HOSE$18.49$14.4210+ In-Stock
113XJ-14453-01-00JOINT, AIR CLNR 1$85.99$67.07Not Shipping
123JD-14459-01-00

(replaces part #
3JD-14459-00-00)

HOLDER, GUIDE$51.99$40.55Not Shipping
133JD-14462-00-00SEAL$38.99$30.416 In-Stock
143XJ-W1441-01-00AIR CLEANER CASE COMP. (3XJ-W14$226.99$177.05Not Shipping
155MV-14477-00-00

(replaces part #
3JD-14477-00-00)

PLATE$63.99$49.91Not Shipping
1695617-05100-00

(replaces part #
95601-05100-00)

NUT, U$10.49$8.1810+ In-Stock
173JD-14451-01-00

(replaces part #
3JD-14451-00-00)

ELEMENT, AIR CLEANER$34.99$27.292 In-Stock
183JD-14458-01-00

(replaces part #
3JD-14458-00-00)

GUIDE$76.99$60.0510+ In-Stock
1990209-06096-00WASHER$10.49$8.1810+ In-Stock
2090122-06005-00

(replaces part #
90122-06030-00)

BOLT, WING$13.49$10.5210+ In-Stock
2192995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2295024-06010-00

(replaces part #
95023-06010-00)

BOLT, FLANGE (SMALL HEAD)$5.00$4.3010+ In-Stock
2390119-06185-00BOLT, WITH WASHER$11.49$8.964 In-Stock
243XJ-1441A-00-00COVER, CASE | AP FOR AIR CLEANER COVER$50.99$39.77Not Shipping
