1992 Yamaha YZ125 Clutch OEM Parts Diagram

Submodel YZ125D1 - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

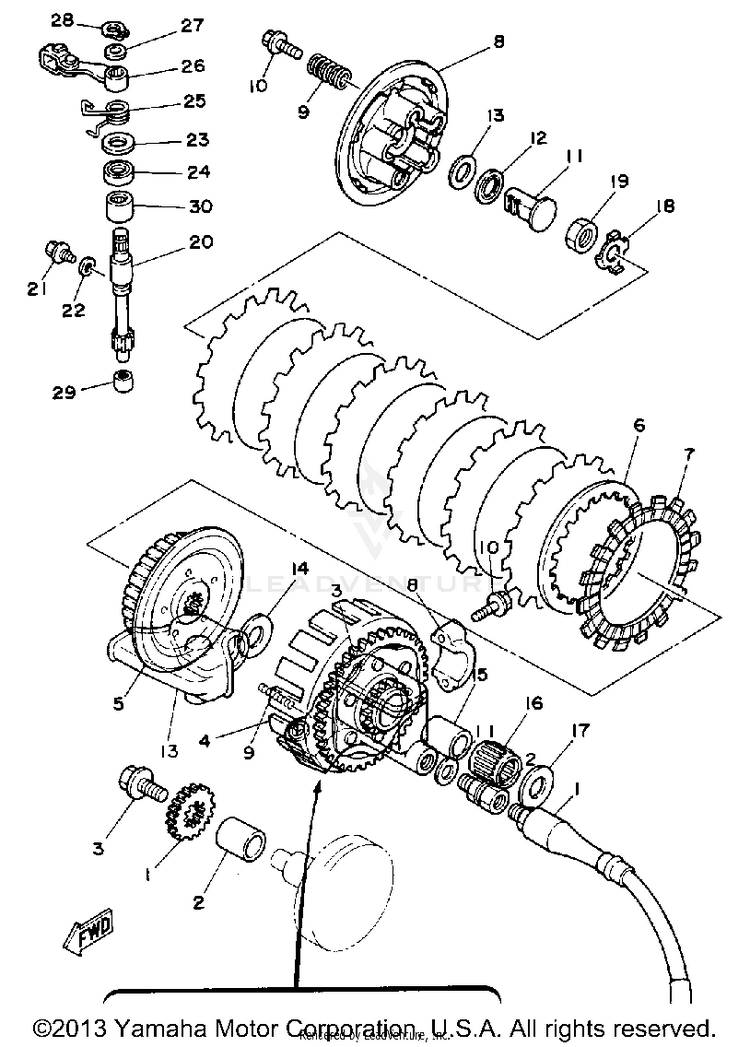

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13XJ-16111-00-00GEAR, PRIMARY DRIVE$78.99$61.61Not Shipping
290387-202T9-00COLLAR$39.99$31.193 In-Stock
390105-10445-00BOLT, WASHER BASED$12.49$9.745 In-Stock
43XJ-16150-00-00PRI DRVN GEARCOMP.$332.99$259.73Not Shipping
53XJ-16371-00-00BOSS, CLUTCH$161.99$126.35Usually ships in 7-10 business days
63XJ-16324-10-00

(replaces part #
3XJ-16324-00-00)

PLATE, CLUTCH 1$14.49$13.3010+ In-Stock
73XJ-16321-00-00PLATE, FRICTION$24.99$19.4910+ In-Stock
83XJ-16351-00-00PLATE, PRESSURE 1$159.99$124.79Usually ships in 7-10 business days
990501-23598-00SPRING, COMPRESSION$8.49$6.629 In-Stock
1090159-06016-00SCREW, WITH WASHER$3.65$3.1410+ In-Stock
113XJ-16356-00-00ROD, PUSH 1$21.99$18.03Not Shipping
1293340-21505-00BEARING$20.99$16.3710+ In-Stock
1390201-150U6-00

(replaces part #
90201-150H2-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
1490201-204K8-00WASHER, PLATE$11.49$8.9610+ In-Stock
153XJ-16181-00-00SPACER 1$50.99$39.77Not Shipping
1693310-225N0-00BEARING$49.99$38.996 In-Stock
173XJ-16164-00-00PLATE, THRUST 2$19.99$16.39Not Shipping
1890215-16320-00WASHER, LOCK$13.49$10.522 In-Stock
1990170-16326-00NUT$14.49$11.305 In-Stock
204DB-16382-00-00AXLE, PUSH LEVER$36.99$30.33Usually ships in 7-10 business days
2190109-06418-00BOLT$10.49$8.1810+ In-Stock
2290430-06014-00GASKET$8.99$7.0110+ In-Stock
2390201-12474-00WASHER, PLATE$8.49$6.622 In-Stock
2493102-15212-00OIL SEAL$10.49$8.189 In-Stock
2590508-14767-00SPRING, TORSION$6.49$5.84Not Shipping
263JD-16340-00-00PUSH LEVER ASSY$106.46$83.04Not Shipping
2790201-10119-00WASHER, PLATE$1.00$0.8610+ In-Stock
2899009-10400-00CIRCLIP$5.49$4.2810+ In-Stock
2993315-10838-00BEARING$17.99$15.15Not Shipping
3093315-31502-00BEARING$39.99$31.1910+ In-Stock
