1993 Yamaha BLASTER 200 Generator OEM Parts Diagram

Submodel BLASTER - YFS200E - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

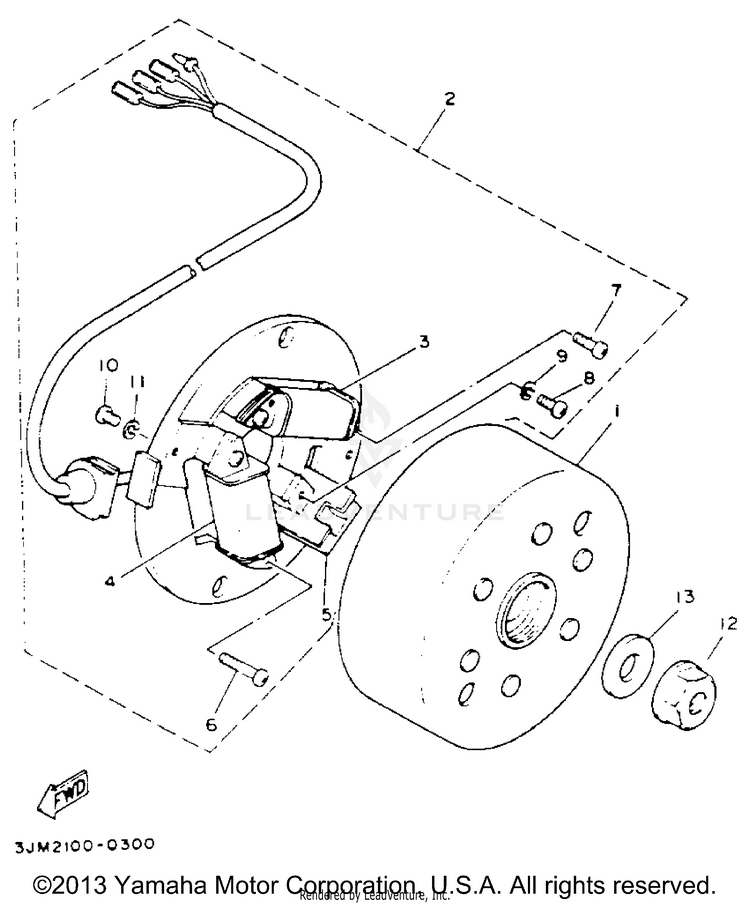

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12XJ-85550-M1-00

(replaces part #
2XJ-85550-M0-00)

ROTOR ASSY$225.99$176.27Not Shipping
23JM-85560-00-00BASE ASSY$244.79$190.94Not Shipping
337A-85520-M2-00

(replaces part #
37A-85520-M1-00)

COIL, CHARGE$95.99$74.87Usually ships in 7-10 business days
42XJ-81313-M0-00COIL, LIGHTING 1$57.99$47.16Not Shipping
52AL-85580-M0-00COIL, PULSER$34.99$28.69Usually ships in 7-10 business days
698517-04020-00

(replaces part #
98511-04020-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
798517-04012-00

(replaces part #
98511-04012-00)

SCREW,PANHEAD$4.20$3.6110+ In-Stock
898580-04010-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
992990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1098580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
1192990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1290179-12657-00

(replaces part #
90179-12421-00)

NUT$6.49$5.0610+ In-Stock
1390201-123L6-00WASHER, PLATE$15.49$12.085 In-Stock
