1993 Yamaha BLASTER 200 Rear Fender OEM Parts Diagram

Submodel BLASTER - YFS200E - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

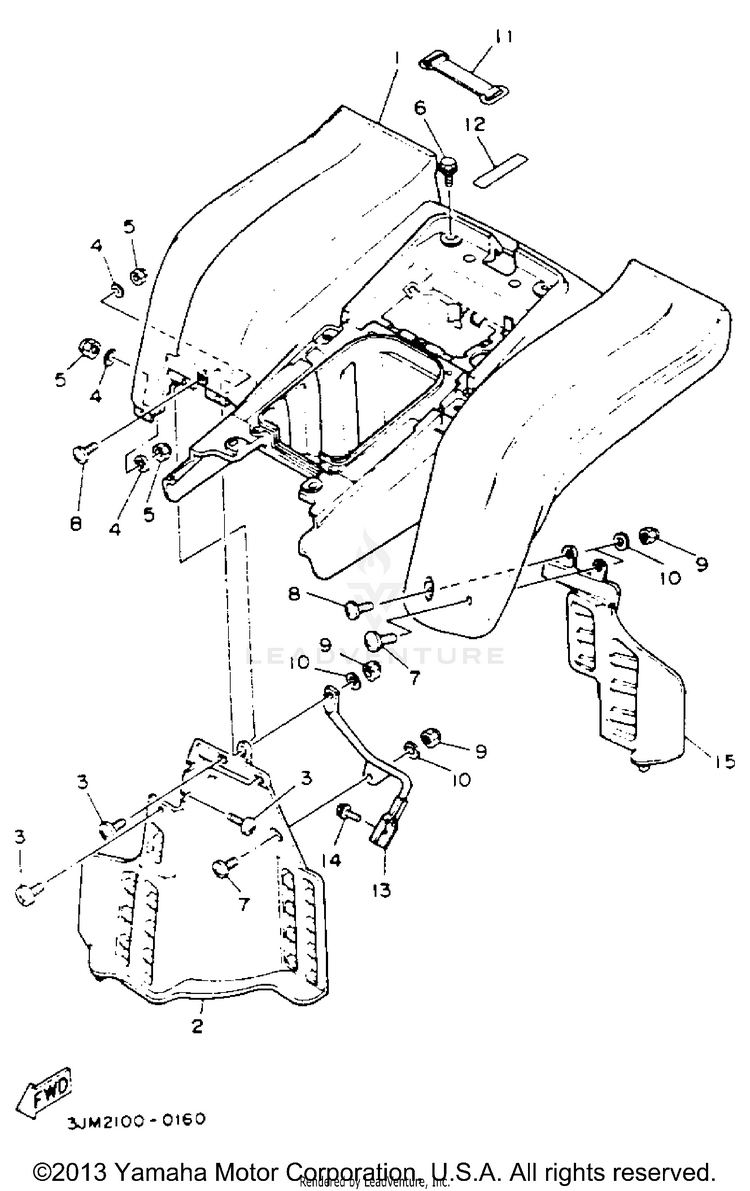

REAR FENDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12XJ-W2161-71-00

(replaces part #
2XJ-21611-70-00)

FENDER,REAR | PURPLISH WHITE SOLID 1$271.99$212.15Not Shipping
23JM-21621-00-00FLAP$102.99$80.337 In-Stock
390154-05005-00SCREW, BINDING$5.49$4.2810+ In-Stock
492990-05200-00WASHER, PLAIN$5.49$4.2810+ In-Stock
595617-05100-00

(replaces part #
95601-05100-00)

NUT, U$10.49$8.1810+ In-Stock
690119-06152-00

(replaces part #
90119-06056-00)

BOLT, WITH WASHER$3.55$3.0510+ In-Stock
790149-06306-00SCREW$3.65$3.1410+ In-Stock
890150-06037-00SCREW, ROUND HEAD$10.49$8.1810+ In-Stock
995617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1092990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
112T4-82131-00-00BAND, BATTERY$9.99$7.793 In-Stock
1293210-61750-00O-RING$9.49$7.4010+ In-Stock
132XJ-21614-00-00STAY, FENDER 2$59.99$46.79Not Shipping
1492017-08012-00

(replaces part #
92016-08012-00)

BOLT, BUTTON HEAD$9.49$7.404 In-Stock
153JM-21691-00-00FLAP$76.99$60.054 In-Stock
