1993 Yamaha FZR1000 Front Master Cylinder 2 OEM Parts Diagram

Submodel FZR1000EC - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER 2

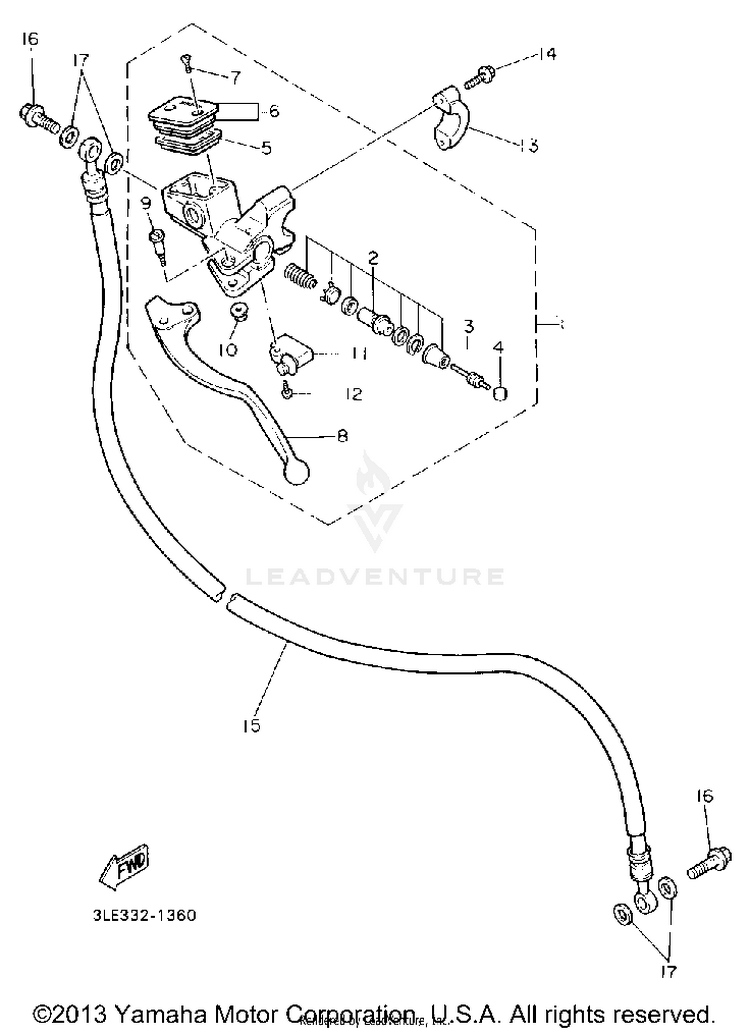

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13SD-25870-11-00MASTER CYLINDER SUB ASSEMBLY$542.99$423.53Usually ships in 7-10 business days
23GM-W0099-00-00CYLINDER KIT, MASTER (CLUTCH$70.99$55.37Usually ships in 7-10 business days
33GM-26464-00-00ROD, PUSH$19.99$16.39Usually ships in 7-10 business days
43GM-26455-00-00BUSH$27.99$21.832 In-Stock
555U-25854-00-00DIAPHRAGM, RESERVOIR$30.99$25.412 In-Stock
63GM-W2585-21-00

(replaces part #
3GM-W2585-20-00)

RESERVOIR CAP SET$32.99$27.05Usually ships in 7-10 business days
798707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
83GM-83912-00-00LEVER 1$65.99$51.47Usually ships in 7-10 business days
93FV-2589F-00-00

(replaces part #
90149-06287-00)

BOLT, LEVER$17.99$14.751 In-Stock
1095707-06500-00

(replaces part #
95706-06500-00)

NUT, FLANGE$1.00$0.9910+ In-Stock
113GM-83980-00-00FRONT STOP SWITCH ASSY$53.99$42.11Usually ships in 7-10 business days
1298707-04016-00

(replaces part #
98706-04016-00)

SCREW, FLAT HEAD$9.49$7.404 In-Stock
1356A-25867-00-00BRACKET, MASTER CYLINDER$31.99$24.953 In-Stock
1495027-06025-00

(replaces part #
95026-06025-00)

BOLT, FLANGE$4.16$3.5810+ In-Stock
153GM-26470-A1-00

(replaces part #
2GH-26470-01-00)

HOSE, CLUTCH$102.99$80.33Usually ships in 7-10 business days
1690401-10159-00

(replaces part #
90401-10096-00)

BOLT, UNION$12.49$9.7410+ In-Stock
1790201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
