1993 Yamaha FZR1000 Headlight OEM Parts Diagram

Submodel FZR1000EC - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

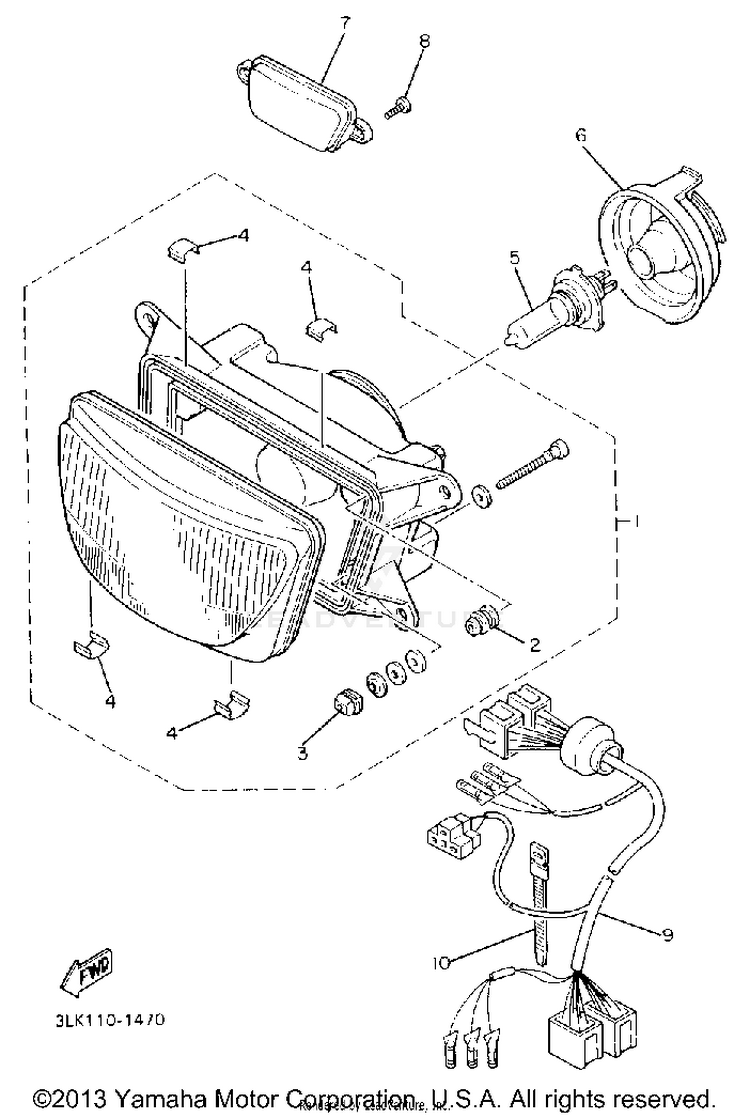

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13HH-84320-00-00LENS ASSEMBLY$120.35$93.87Not Shipping
23AJ-8431U-00-00HOLDER$10.99$9.01Usually ships in 7-10 business days
351L-84334-00-00NUT, ADJUSTING$9.99$8.99Usually ships in 7-10 business days
43MA-8413H-00-00PLATE, SPRING$6.49$5.84Usually ships in 7-10 business days
58V0-84314-10-00

(replaces part #
5V2-84314-00-XX)

BULB, HEADLIGHT (12V-60/55W) | HALO- GEN$75.99$60.93Usually ships in 7-10 business days
636Y-84397-00-00COVER, SOCKET$26.99$22.13Usually ships in 7-10 business days
73GM-84378-00-P1CAP | VIVID RED$79.99$62.39Usually ships in 7-10 business days
897707-50012-00

(replaces part #
90167-05041-00)

SCREW, TRUSS HEAD TAPPING$4.63$3.9810+ In-Stock
93LK-84359-10-00CORD, HEADLIGHT$159.99$124.79Usually ships in 7-10 business days
105Y9-12491-00-00CLAMP 1$7.49$6.744 In-Stock
