1993 Yamaha GTS1000 Generator OEM Parts Diagram

Submodel GTS1000AEC - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

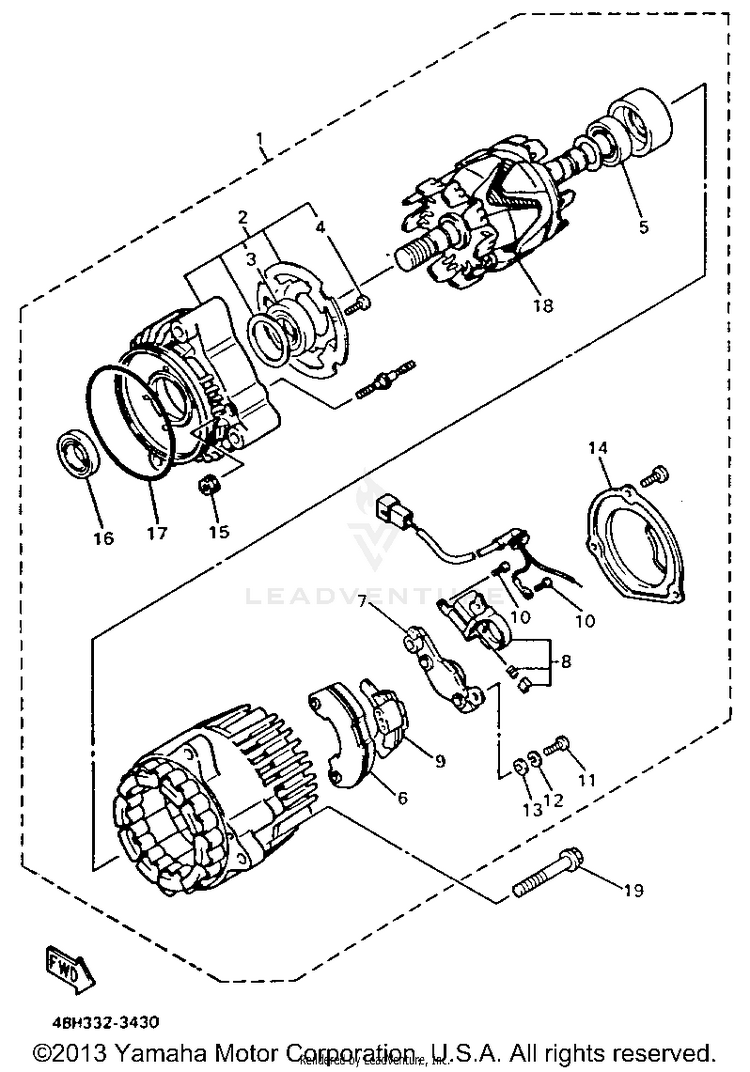

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KM-81600-10-00

(replaces part #
4BH-81600-00-00)

A.C. GENERATOR ASSY$1,052.99$881.75Usually ships in 7-10 business days
24KG-81634-00-00

(replaces part #
4BH-81634-00-00)

STATOR ASSY$410.99$341.26Usually ships in 7-10 business days
393306-20226-00

(replaces part #
4BH-81643-00-00)

BEARING$42.99$33.534 In-Stock
44BH-81645-00-00SCREW$0.65$0.58Usually ships in 7-10 business days
54BH-81643-10-00BEARING$46.99$38.53Usually ships in 7-10 business days
64BH-81970-00-00RECTIFIER ASSEMBLY$338.99$281.40Usually ships in 7-10 business days
736Y-81910-50-00VOLTAGE REGULATOR ASSEMBLY$327.99$272.59Usually ships in 7-10 business days
83FV-81619-00-00BRUSH HOLDER ASSEMBLY$68.99$53.81Usually ships in 7-10 business days
94BH-81972-00-00COVER, RECTIFIER$20.99$17.21Usually ships in 7-10 business days
103FV-81645-00-00SCREW$12.49$10.24Usually ships in 7-10 business days
1198507-05018-00

(replaces part #
98501-05018-00)

SCREW, PAN HEAD$3.55$3.0510+ In-Stock
1292990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1392990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
144BH-81604-00-00COVER ASSEMBLY$47.99$39.35Usually ships in 7-10 business days
1595707-05500-00

(replaces part #
95701-05500-00)

NUT, FLANGE$9.49$7.4010+ In-Stock
1636Y-81638-50-00OIL SEAL$36.99$30.33Usually ships in 7-10 business days
172KT-81642-50-00O-RING$26.99$22.13Usually ships in 7-10 business days
184BH-81660-00-00ROTOR ASSEMBLY$317.99$263.94Usually ships in 7-10 business days
1990105-084A1-00

(replaces part #
95816-08065-00)

BOLT, FLANGE$11.49$8.962 In-Stock
